scope
Element Information

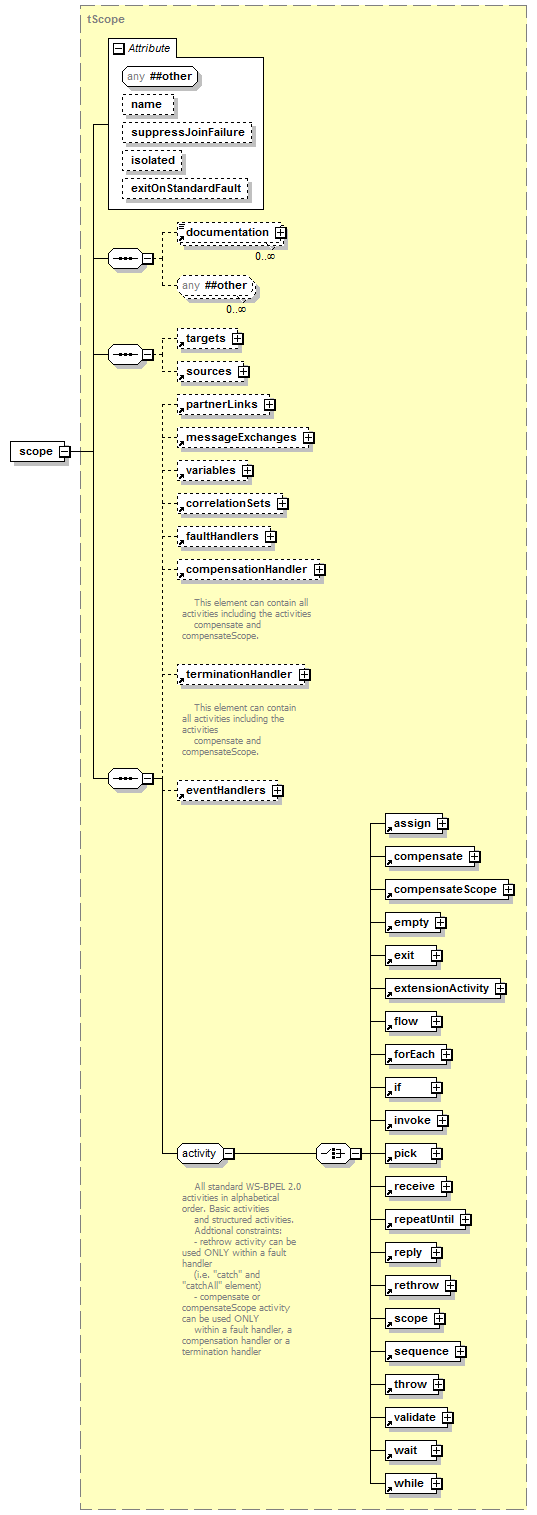

Model
documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , targets{0,1} , sources{0,1} , partnerLinks{0,1} , messageExchanges{0,1} , variables{0,1} , correlationSets{0,1} , faultHandlers{0,1} , compensationHandler{0,1} , terminationHandler{0,1} , eventHandlers{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, compensationHandler, correlationSets, documentation, empty, eventHandlers, exit, extensionActivity, faultHandlers, flow, forEach, if, invoke, messageExchanges, partnerLinks, pick, receive, repeatUntil, reply, rethrow, scope, sequence, sources, targets, terminationHandler, throw, validate, variables, wait, while
Attributes
| QName | Type | Fixed | Default | Use | Inheritable | Annotation |
|---|---|---|---|---|---|---|
| exitOnStandardFault | tBoolean | optional | ||||
| isolated | tBoolean | no | optional | |||
| name | xsd:NCName | optional | ||||
| suppressJoinFailure | tBoolean | optional | ||||
| Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace' | ||||||
Used By
| Element Group | activity |
| Complex Types | tForEach, tOnAlarmEvent, tOnEvent |
Source
<xsd:element name="scope" type="tScope"/> |
