sequence

Element Information

Model

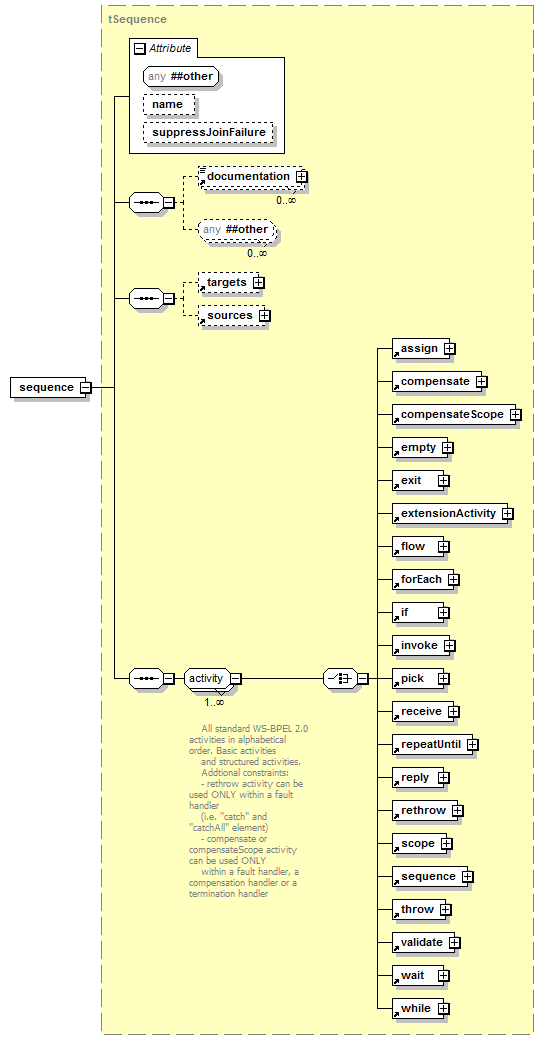

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , targets{0,1} , sources{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, documentation, empty, exit, extensionActivity, flow, forEach, if, invoke, pick, receive, repeatUntil, reply, rethrow, scope, sequence, sources, targets, throw, validate, wait, while

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xsd:NCName optional
suppressJoinFailure tBoolean optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element Group activity

Source

<xsd:element name="sequence" type="tSequence"/>

Sample
