invoke

Element Information

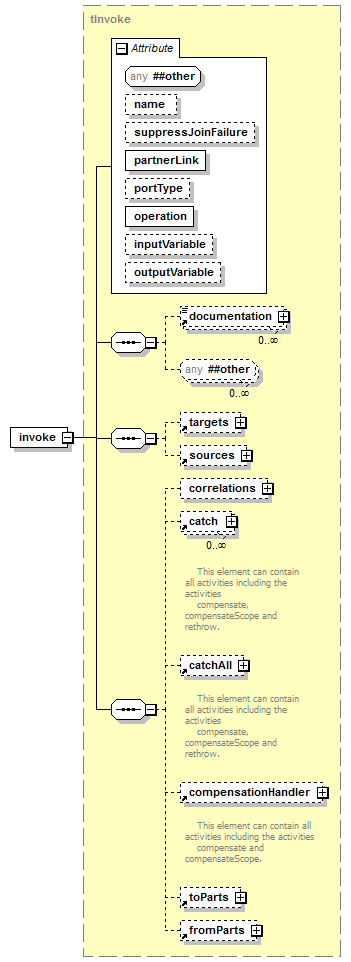

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , targets{0,1} , sources{0,1} , correlations{0,1} , catch* , catchAll{0,1} , compensationHandler{0,1} , toParts{0,1} , fromParts{0,1}

Children: catch, catchAll, compensationHandler, correlations, documentation, fromParts, sources, targets, toParts

Attributes

QName	Type	Fixed	Default	Use	Inheritable	Annotation
inputVariable	BPELVariableName			optional
name	xsd:NCName			optional
operation	xsd:NCName			required
outputVariable	BPELVariableName			optional
partnerLink	xsd:NCName			required
portType	xsd:QName			optional
suppressJoinFailure	tBoolean			optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element Group

activity

Source

<xsd:element name="invoke" type="tInvoke"/>

Sample
