tForEach

Complex Type Information

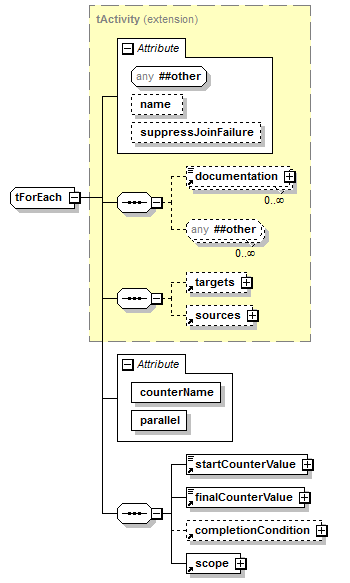

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , targets{0,1} , sources{0,1} , startCounterValue , finalCounterValue , completionCondition{0,1} , scope
Children: completionCondition, documentation, finalCounterValue, scope, sources, startCounterValue, targets

Attributes

QName Type Fixed Default Use Inheritable Annotation
counterName BPELVariableName required
name xsd:NCName optional
parallel tBoolean required
suppressJoinFailure tBoolean optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element forEach

Source

<xsd:complexType name="tForEach">
  <xsd:complexContent>
    <xsd:extension base="tActivity">
      <xsd:sequence>
        <xsd:element ref="startCounterValue" minOccurs="1"/>
        <xsd:element ref="finalCounterValue" minOccurs="1"/>
        <xsd:element ref="completionCondition" minOccurs="0"/>
        <xsd:element ref="scope" minOccurs="1"/>
      </xsd:sequence>
      <xsd:attribute name="counterName" type="BPELVariableName" use="required"/>
      <xsd:attribute name="parallel" type="tBoolean" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
