tOnEvent

Complex Type Information

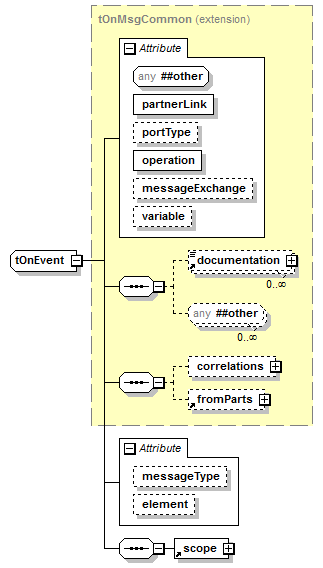

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , correlations{0,1} , fromParts{0,1} , scope
Children: correlations, documentation, fromParts, scope

Attributes

QName Type Fixed Default Use Inheritable Annotation
element xsd:QName optional
messageExchange xsd:NCName optional
messageType xsd:QName optional
operation xsd:NCName required
partnerLink xsd:NCName required
portType xsd:QName optional
variable BPELVariableName optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element onEvent

Source

<xsd:complexType name="tOnEvent">
  <xsd:complexContent>
    <xsd:extension base="tOnMsgCommon">
      <xsd:sequence>
        <xsd:element ref="scope" minOccurs="1"/>
      </xsd:sequence>
      <xsd:attribute name="messageType" type="xsd:QName" use="optional"/>
      <xsd:attribute name="element" type="xsd:QName" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
