db:tocdiv

Element Information

Model

(db:title | db:titleabbrev | db:subtitle) , db:info{0,1} , (db:itemizedlist | db:orderedlist | db:simplelist | db:variablelist | db:segmentedlist | db:glosslist | db:bibliolist | db:calloutlist | db:qandaset | db:example | db:figure | db:table | db:equation | db:informalexample | db:informalfigure | db:informaltable | db:informalequation | db:sidebar | db:blockquote | db:address | db:epigraph | db:mediaobject | db:screenshot | db:procedure | db:task | db:productionset | db:constraintdef | db:msgset | db:screen | db:literallayout | db:programlistingco | db:screenco | db:programlisting | db:synopsis | db:bridgehead | db:revhistory | db:funcsynopsis | db:classsynopsis | db:methodsynopsis | db:constructorsynopsis | db:destructorsynopsis | db:fieldsynopsis | db:cmdsynopsis | db:caution | db:important | db:note | db:tip | db:warning | db:remark | db:para | db:formalpara | db:simpara | db:annotation | db:indexterm) , (db:tocdiv | db:tocentry)
Children: db:address, db:annotation, db:bibliolist, db:blockquote, db:bridgehead, db:calloutlist, db:caution, db:classsynopsis, db:cmdsynopsis, db:constraintdef, db:constructorsynopsis, db:destructorsynopsis, db:epigraph, db:equation, db:example, db:fieldsynopsis, db:figure, db:formalpara, db:funcsynopsis, db:glosslist, db:important, db:indexterm, db:info, db:informalequation, db:informalexample, db:informalfigure, db:informaltable, db:itemizedlist, db:literallayout, db:mediaobject, db:methodsynopsis, db:msgset, db:note, db:orderedlist, db:para, db:procedure, db:productionset, db:programlisting, db:programlistingco, db:qandaset, db:remark, db:revhistory, db:screen, db:screenco, db:screenshot, db:segmentedlist, db:sidebar, db:simpara, db:simplelist, db:subtitle, db:synopsis, db:table, db:task, db:tip, db:title, db:titleabbrev, db:tocdiv, db:tocentry, db:variablelist, db:warning

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
outputformat optional
pagenum optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Elements db:toc, db:tocdiv

Source

<xs:element name="tocdiv">
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="db:_info" minOccurs="0"/>
      <xs:group ref="db:all.blocks" minOccurs="0" maxOccurs="unbounded"/>
      <xs:choice maxOccurs="unbounded">
        <xs:element ref="db:tocdiv"/>
        <xs:element ref="db:tocentry"/>
      </xs:choice>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="db:common.attributes"/>
    <xs:attribute name="pagenum"/>
    <xs:attribute name="linkend" type="xs:IDREF"/>
  </xs:complexType>
</xs:element>

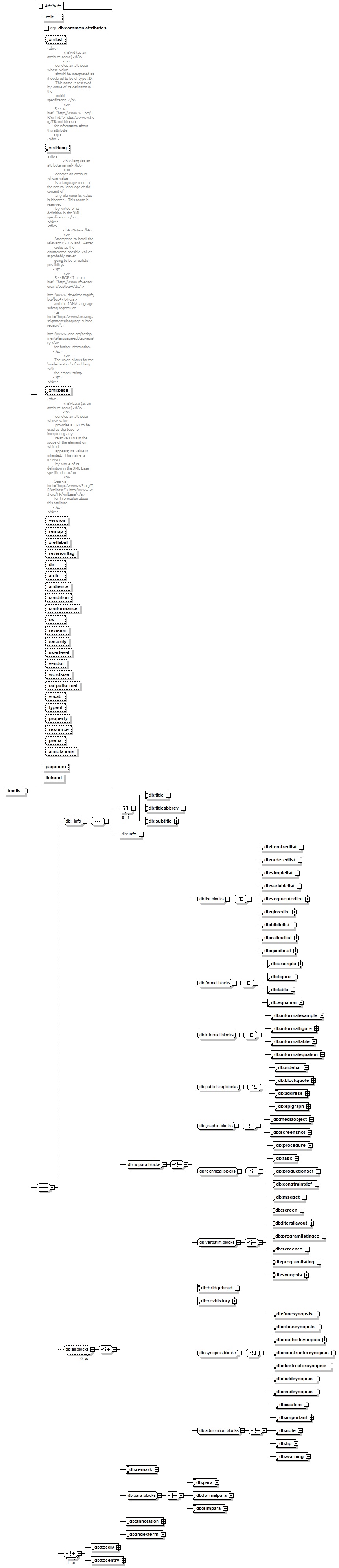

Sample
