db:screen

Element Information

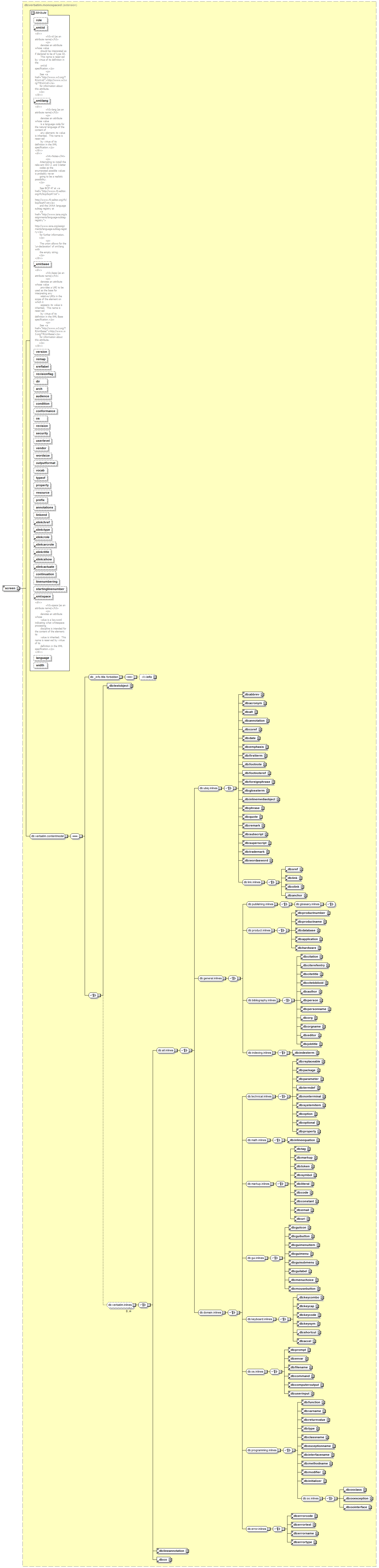

Model

db:info{0,1} , (db:textobject | db:abbrev | db:acronym | db:alt | db:annotation | db:coref | db:date | db:emphasis | db:firstterm | db:footnote | db:footnoteref | db:foreignphrase | db:glossterm | db:inlinemediaobject | db:phrase | db:quote | db:remark | db:subscript | db:superscript | db:trademark | db:wordasword | db:xref | db:link | db:olink | db:anchor | | db:productnumber | db:productname | db:database | db:application | db:hardware | db:citation | db:citerefentry | db:citetitle | db:citebiblioid | db:author | db:person | db:personname | db:org | db:orgname | db:editor | db:jobtitle | db:indexterm | db:replaceable | db:package | db:parameter | db:termdef | db:nonterminal | db:systemitem | db:option | db:optional | db:property | db:inlineequation | db:tag | db:markup | db:token | db:symbol | db:literal | db:code | db:constant | db:email | db:uri | db:guiicon | db:guibutton | db:guimenuitem | db:guimenu | db:guisubmenu | db:guilabel | db:menuchoice | db:mousebutton | db:keycombo | db:keycap | db:keycode | db:keysym | db:shortcut | db:accel | db:prompt | db:envar | db:filename | db:command | db:computeroutput | db:userinput | db:function | db:varname | db:returnvalue | db:type | db:classname | db:exceptionname | db:interfacename | db:methodname | db:modifier | db:initializer | db:ooclass | db:ooexception | db:oointerface | db:errorcode | db:errortext | db:errorname | db:errortype | db:lineannotation | db:co)
Children: db:abbrev, db:accel, db:acronym, db:alt, db:anchor, db:annotation, db:application, db:author, db:citation, db:citebiblioid, db:citerefentry, db:citetitle, db:classname, db:co, db:code, db:command, db:computeroutput, db:constant, db:coref, db:database, db:date, db:editor, db:email, db:emphasis, db:envar, db:errorcode, db:errorname, db:errortext, db:errortype, db:exceptionname, db:filename, db:firstterm, db:footnote, db:footnoteref, db:foreignphrase, db:function, db:glossterm, db:guibutton, db:guiicon, db:guilabel, db:guimenu, db:guimenuitem, db:guisubmenu, db:hardware, db:indexterm, db:info, db:initializer, db:inlineequation, db:inlinemediaobject, db:interfacename, db:jobtitle, db:keycap, db:keycode, db:keycombo, db:keysym, db:lineannotation, db:link, db:literal, db:markup, db:menuchoice, db:methodname, db:modifier, db:mousebutton, db:nonterminal, db:olink, db:ooclass, db:ooexception, db:oointerface, db:option, db:optional, db:org, db:orgname, db:package, db:parameter, db:person, db:personname, db:phrase, db:productname, db:productnumber, db:prompt, db:property, db:quote, db:remark, db:replaceable, db:returnvalue, db:shortcut, db:subscript, db:superscript, db:symbol, db:systemitem, db:tag, db:termdef, db:textobject, db:token, db:trademark, db:type, db:uri, db:userinput, db:varname, db:wordasword, db:xref

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
continuation restriction of xs:token optional
dir restriction of xs:token optional
language optional
linenumbering restriction of xs:token optional
linkend xs:IDREF optional
os optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
startinglinenumber xs:integer optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
width xs:nonNegativeInteger optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xml:space restriction of xs:token optional
xreflabel optional

Used By

Element Group db:verbatim.blocks
Element db:screenco

Source

<xs:element name="screen">
  <xs:complexType mixed="true">
    <xs:complexContent>
      <xs:extension base="db:verbatim.monospaced"/>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

Sample
