db:systemitem

Element Information

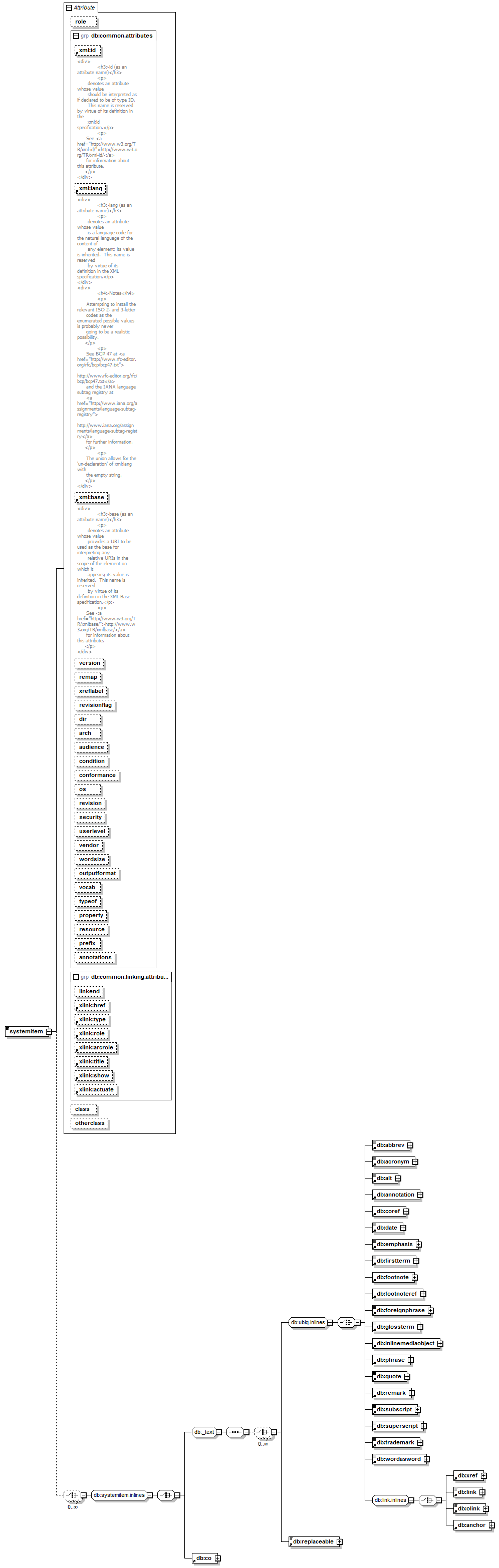

Model

((db:abbrev | db:acronym | db:alt | db:annotation | db:coref | db:date | db:emphasis | db:firstterm | db:footnote | db:footnoteref | db:foreignphrase | db:glossterm | db:inlinemediaobject | db:phrase | db:quote | db:remark | db:subscript | db:superscript | db:trademark | db:wordasword | db:xref | db:link | db:olink | db:anchor | db:replaceable)) | db:co
Children: db:abbrev, db:acronym, db:alt, db:anchor, db:annotation, db:co, db:coref, db:date, db:emphasis, db:firstterm, db:footnote, db:footnoteref, db:foreignphrase, db:glossterm, db:inlinemediaobject, db:link, db:olink, db:phrase, db:quote, db:remark, db:replaceable, db:subscript, db:superscript, db:trademark, db:wordasword, db:xref

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
class restriction of xs:token optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
otherclass optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Element Group db:technical.inlines

Source

<xs:element name="systemitem">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:group ref="db:systemitem.inlines"/>
    </xs:choice>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="db:common.attributes"/>
    <xs:attributeGroup ref="db:common.linking.attributes"/>
    <xs:attribute name="class">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="daemon"/>
          <xs:enumeration value="domainname"/>
          <xs:enumeration value="etheraddress"/>
          <xs:enumeration value="event"/>
          <xs:enumeration value="eventhandler"/>
          <xs:enumeration value="filesystem"/>
          <xs:enumeration value="fqdomainname"/>
          <xs:enumeration value="groupname"/>
          <xs:enumeration value="ipaddress"/>
          <xs:enumeration value="library"/>
          <xs:enumeration value="macro"/>
          <xs:enumeration value="netmask"/>
          <xs:enumeration value="newsgroup"/>
          <xs:enumeration value="osname"/>
          <xs:enumeration value="other"/>
          <xs:enumeration value="process"/>
          <xs:enumeration value="protocol"/>
          <xs:enumeration value="resource"/>
          <xs:enumeration value="securitycontext"/>
          <xs:enumeration value="server"/>
          <xs:enumeration value="service"/>
          <xs:enumeration value="systemname"/>
          <xs:enumeration value="username"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="otherclass"/>
  </xs:complexType>
</xs:element>

Sample
