db:indexterm

Element Information

Model

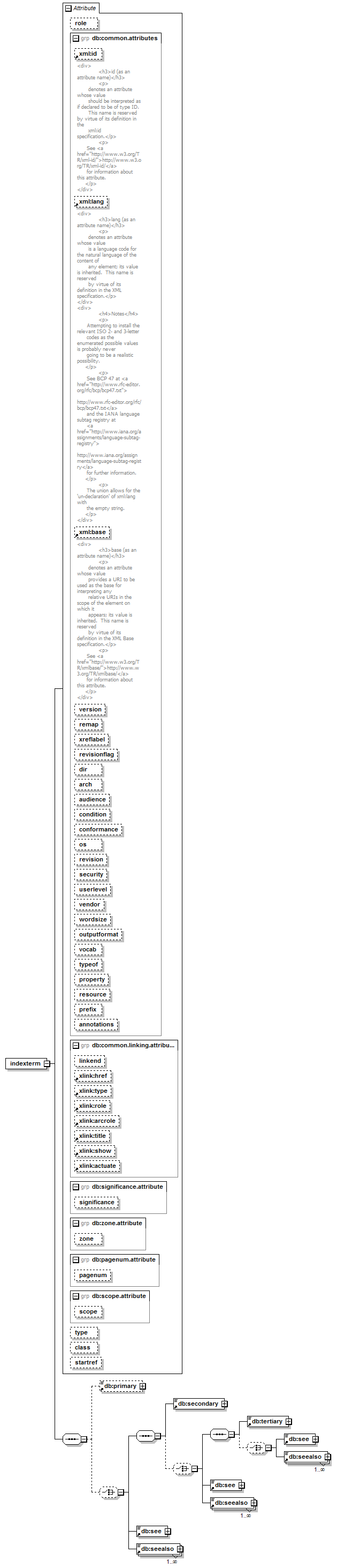

db:primary{0,1} , ((db:secondary , ((db:tertiary , (db:see | db:seealso+)) | db:see | db:seealso+)) | db:see | db:seealso+)
Children: db:primary, db:secondary, db:see, db:seealso, db:tertiary

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
class restriction of xs:token optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
outputformat optional
pagenum optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
scope restriction of xs:token optional
security optional
significance restriction of xs:token optional
startref xs:IDREF optional
type optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional
zone xs:IDREFS optional

Used By

Element Groups db:all.blocks, db:indexing.inlines
Elements db:glossentry, db:itermset, db:refentry, db:refmeta

Source

<xs:element name="indexterm">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="db:primary" minOccurs="0"/>
      <xs:choice minOccurs="0">
        <xs:sequence>
          <xs:element ref="db:secondary"/>
          <xs:choice minOccurs="0">
            <xs:sequence>
              <xs:element ref="db:tertiary"/>
              <xs:choice minOccurs="0">
                <xs:element ref="db:see"/>
                <xs:element ref="db:seealso" maxOccurs="unbounded"/>
              </xs:choice>
            </xs:sequence>
            <xs:element ref="db:see"/>
            <xs:element ref="db:seealso" maxOccurs="unbounded"/>
          </xs:choice>
        </xs:sequence>
        <xs:element ref="db:see"/>
        <xs:element ref="db:seealso" maxOccurs="unbounded"/>
      </xs:choice>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="db:common.attributes"/>
    <xs:attributeGroup ref="db:common.linking.attributes"/>
    <xs:attributeGroup ref="db:significance.attribute"/>
    <xs:attributeGroup ref="db:zone.attribute"/>
    <xs:attributeGroup ref="db:pagenum.attribute"/>
    <xs:attributeGroup ref="db:scope.attribute"/>
    <xs:attribute name="type"/>
    <xs:attribute name="class">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="singular"/>
          <xs:enumeration value="startofrange"/>
          <xs:enumeration value="endofrange"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="startref" type="xs:IDREF"/>
  </xs:complexType>
</xs:element>

Sample
