db:keycap

Element Information

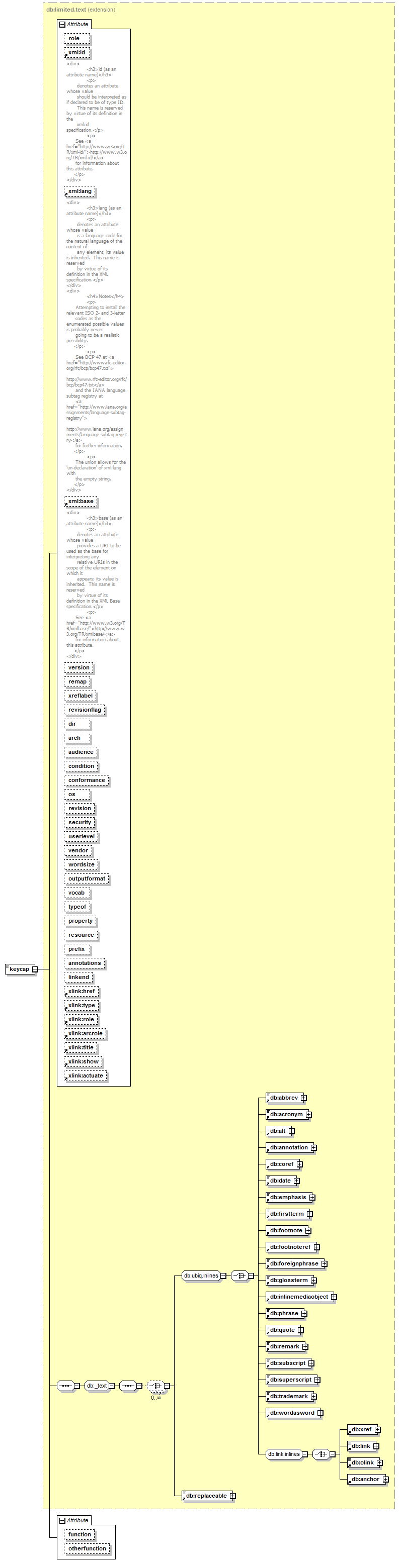

Model

(db:abbrev | db:acronym | db:alt | db:annotation | db:coref | db:date | db:emphasis | db:firstterm | db:footnote | db:footnoteref | db:foreignphrase | db:glossterm | db:inlinemediaobject | db:phrase | db:quote | db:remark | db:subscript | db:superscript | db:trademark | db:wordasword | db:xref | db:link | db:olink | db:anchor | db:replaceable)
Children: db:abbrev, db:acronym, db:alt, db:anchor, db:annotation, db:coref, db:date, db:emphasis, db:firstterm, db:footnote, db:footnoteref, db:foreignphrase, db:glossterm, db:inlinemediaobject, db:link, db:olink, db:phrase, db:quote, db:remark, db:replaceable, db:subscript, db:superscript, db:trademark, db:wordasword, db:xref

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
function restriction of xs:token optional
linkend xs:IDREF optional
os optional
otherfunction optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Element Groups db:keyboard.inlines, db:keycombination.contentmodel

Source

<xs:element name="keycap">
  <xs:complexType mixed="true">
    <xs:complexContent>
      <xs:extension base="db:limited.text">
        <xs:attribute name="function">
          <xs:simpleType>
            <xs:restriction base="xs:token">
              <xs:enumeration value="alt"/>
              <xs:enumeration value="altgr"/>
              <xs:enumeration value="backspace"/>
              <xs:enumeration value="command"/>
              <xs:enumeration value="control"/>
              <xs:enumeration value="delete"/>
              <xs:enumeration value="down"/>
              <xs:enumeration value="end"/>
              <xs:enumeration value="enter"/>
              <xs:enumeration value="escape"/>
              <xs:enumeration value="home"/>
              <xs:enumeration value="insert"/>
              <xs:enumeration value="left"/>
              <xs:enumeration value="meta"/>
              <xs:enumeration value="option"/>
              <xs:enumeration value="pagedown"/>
              <xs:enumeration value="pageup"/>
              <xs:enumeration value="right"/>
              <xs:enumeration value="return"/>
              <xs:enumeration value="shift"/>
              <xs:enumeration value="space"/>
              <xs:enumeration value="tab"/>
              <xs:enumeration value="up"/>
              <xs:enumeration value="other"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="otherfunction"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

Sample
