tProcess

Complex Type Information

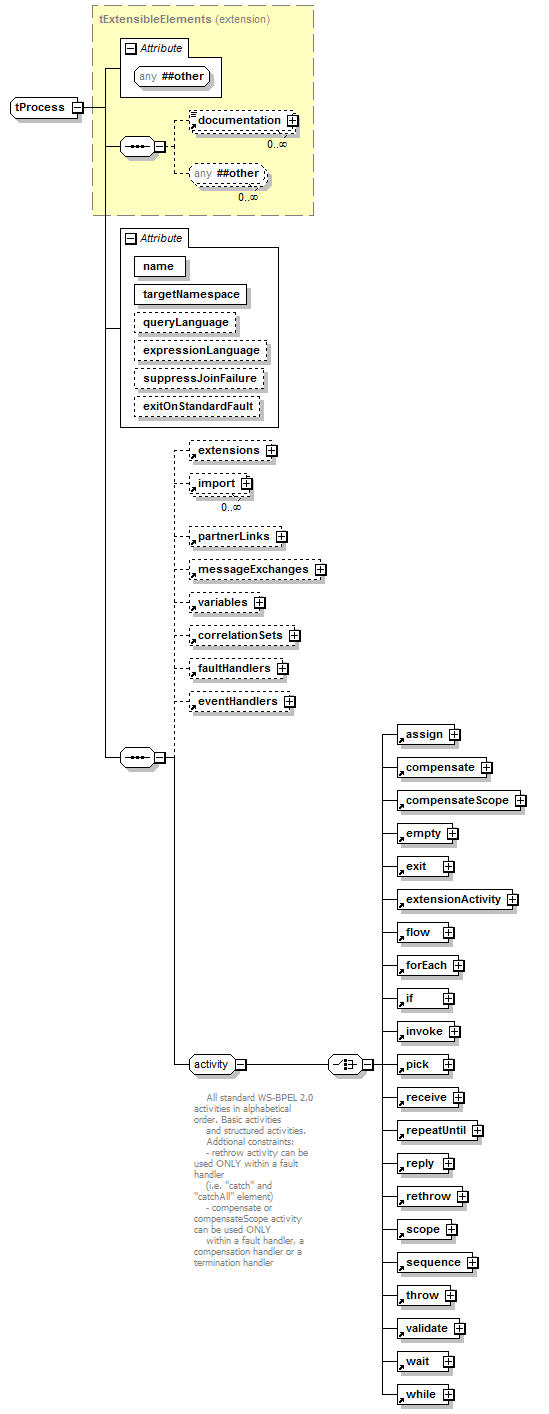

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , extensions{0,1} , import* , partnerLinks{0,1} , messageExchanges{0,1} , variables{0,1} , correlationSets{0,1} , faultHandlers{0,1} , eventHandlers{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, correlationSets, documentation, empty, eventHandlers, exit, extensionActivity, extensions, faultHandlers, flow, forEach, if, import, invoke, messageExchanges, partnerLinks, pick, receive, repeatUntil, reply, rethrow, scope, sequence, throw, validate, variables, wait, while

Attributes

QName Type Fixed Default Use Inheritable Annotation
exitOnStandardFault tBoolean no optional
expressionLanguage xsd:anyURI urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 optional
name xsd:NCName required
queryLanguage xsd:anyURI urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 optional
suppressJoinFailure tBoolean no optional
targetNamespace xsd:anyURI required
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element process

Source

<xsd:complexType name="tProcess">
  <xsd:complexContent>
    <xsd:extension base="tExtensibleElements">
      <xsd:sequence>
        <xsd:element ref="extensions" minOccurs="0"/>
        <xsd:element ref="import" minOccurs="0" maxOccurs="unbounded"/>
        <xsd:element ref="partnerLinks" minOccurs="0"/>
        <xsd:element ref="messageExchanges" minOccurs="0"/>
        <xsd:element ref="variables" minOccurs="0"/>
        <xsd:element ref="correlationSets" minOccurs="0"/>
        <xsd:element ref="faultHandlers" minOccurs="0"/>
        <xsd:element ref="eventHandlers" minOccurs="0"/>
        <xsd:group ref="activity" minOccurs="1"/>
      </xsd:sequence>
      <xsd:attribute name="name" type="xsd:NCName" use="required"/>
      <xsd:attribute name="targetNamespace" type="xsd:anyURI" use="required"/>
      <xsd:attribute name="queryLanguage" type="xsd:anyURI" default="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0"/>
      <xsd:attribute name="expressionLanguage" type="xsd:anyURI" default="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0"/>
      <xsd:attribute name="suppressJoinFailure" type="tBoolean" default="no"/>
      <xsd:attribute name="exitOnStandardFault" type="tBoolean" default="no"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
