process

This is the root element for a WS-BPEL 2.0 process.

Element Information

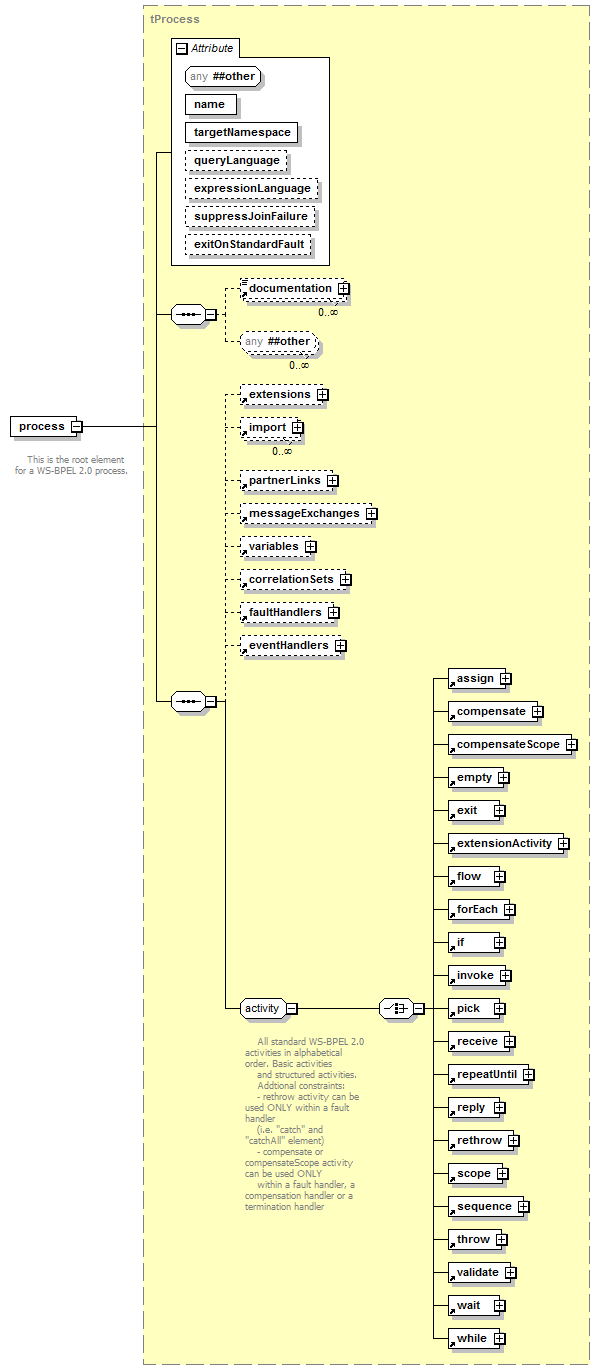

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , extensions{0,1} , import* , partnerLinks{0,1} , messageExchanges{0,1} , variables{0,1} , correlationSets{0,1} , faultHandlers{0,1} , eventHandlers{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, correlationSets, documentation, empty, eventHandlers, exit, extensionActivity, extensions, faultHandlers, flow, forEach, if, import, invoke, messageExchanges, partnerLinks, pick, receive, repeatUntil, reply, rethrow, scope, sequence, throw, validate, variables, wait, while

Attributes

QName Type Fixed Default Use Inheritable Annotation
exitOnStandardFault tBoolean no optional
expressionLanguage xsd:anyURI urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 optional
name xsd:NCName required
queryLanguage xsd:anyURI urn:oasis:names:tc:wsbpel:2.0:sublang:xpath1.0 optional
suppressJoinFailure tBoolean no optional
targetNamespace xsd:anyURI required
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Source

<xsd:element name="process" type="tProcess">
  <xsd:annotation>
    <xsd:documentation>This is the root element for a WS-BPEL 2.0 process.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

Sample
