Level3Cell

Cell with extensions for biophysics, and network functionality

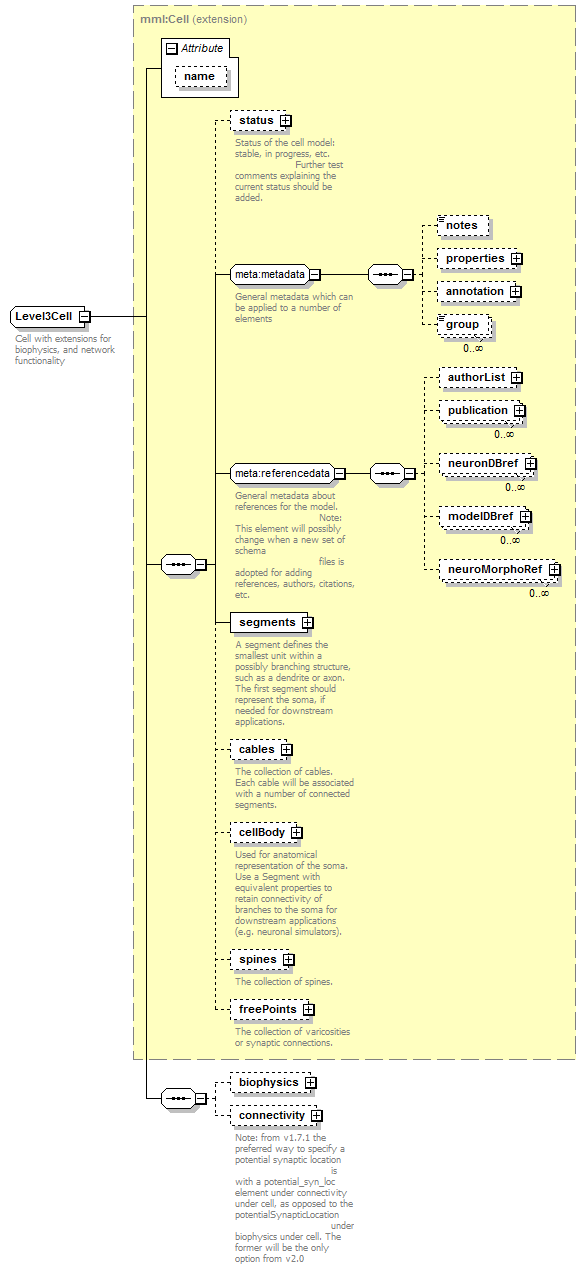

Complex Type Information

Model

status{0,1} , notes{0,1} , properties{0,1} , annotation{0,1} , group* , authorList{0,1} , publication* , neuronDBref* , modelDBref* , neuroMorphoRef* , segments , cables{0,1} , cellBody{0,1} , spines{0,1} , freePoints{0,1} , biophysics{0,1} , connectivity{0,1}

Children: annotation, authorList, biophysics, cables, cellBody, connectivity, freePoints, group, modelDBref, neuroMorphoRef, neuronDBref, notes, properties, publication, segments, spines, status

Attributes

QName	Type	Fixed	Default	Use	Inheritable	Annotation
name	xs:string			optional

Used By

Element

Level3Cells/cell

Source

<xs:complexType name="Level3Cell">
  <xs:annotation>
    <xs:documentation>Cell with extensions for biophysics, and network functionality</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="mml:Cell">
      <xs:sequence>
        <xs:element name="biophysics" type="Level3Biophysics" minOccurs="0"/>
        <xs:element name="connectivity" type="net:Level3Connectivity" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
