cables

The collection of cables. Each cable will be associated with a number of connected segments.

Element Information

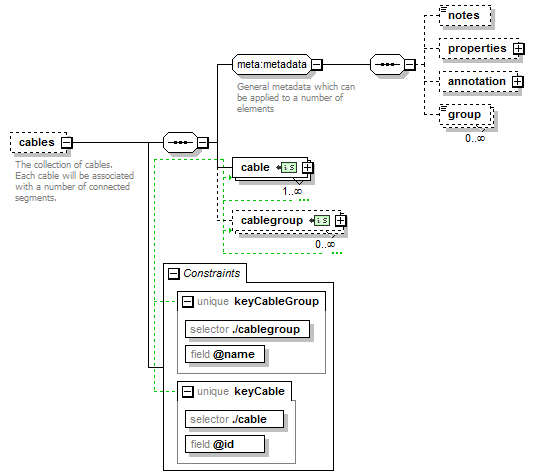

Model

Source

<xs:element name="cables" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The collection of cables. Each cable will be associated with a number of connected segments.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="meta:metadata"/>
      <xs:element name="cable" type="Cable" maxOccurs="unbounded"/>
      <xs:element name="cablegroup" type="CableGroup" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
  <!-- This needs further testing!! -->
  <xs:unique name="keyCableGroup">
    <xs:selector xpath="./cablegroup"/>
    <xs:field xpath="@name"/>
  </xs:unique>
  <xs:unique name="keyCable">
    <xs:selector xpath="./cable"/>
    <xs:field xpath="@id"/>
  </xs:unique>
  <!--
                <xs:keyref name="cableParentRef" refer="keyCable">
                    <xs:selector xpath=".//cable"/>
                    <xs:field xpath="@parent"/>
                </xs:keyref>-->
</xs:element>

Sample
