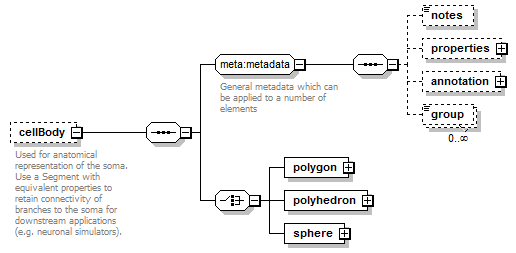

cellBody

Used for anatomical representation of the soma. Use a Segment with equivalent properties to retain connectivity of branches to the soma for downstream applications (e.g. neuronal simulators).

Element Information

Model

Source

<xs:element name="cellBody" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Used for anatomical representation of the soma. Use a Segment with equivalent properties to retain connectivity of branches to the soma for downstream applications (e.g. neuronal simulators).</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="meta:metadata"/>
      <xs:choice>
        <xs:element name="polygon" type="meta:Polygon"/>
        <xs:element name="polyhedron" type="meta:Polyhedron"/>
        <xs:element name="sphere" type="meta:Sphere"/>
      </xs:choice>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Sample
