docbook:variablelist

Element Information

Model

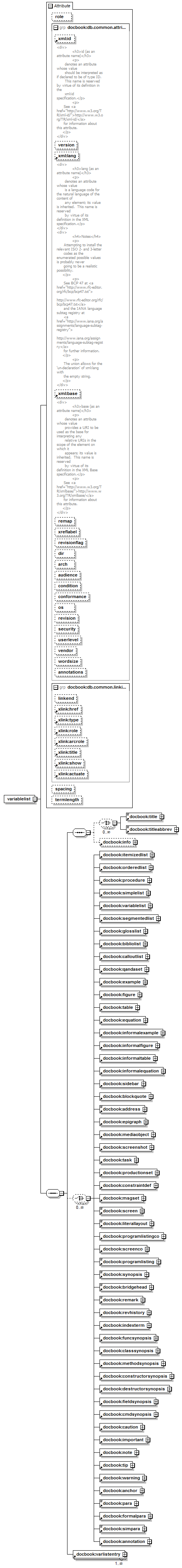

(docbook:title | docbook:titleabbrev) , docbook:info{0,1} , (docbook:itemizedlist | docbook:orderedlist | docbook:procedure | docbook:simplelist | docbook:variablelist | docbook:segmentedlist | docbook:glosslist | docbook:bibliolist | docbook:calloutlist | docbook:qandaset | docbook:example | docbook:figure | docbook:table | docbook:equation | docbook:informalexample | docbook:informalfigure | docbook:informaltable | docbook:informalequation | docbook:sidebar | docbook:blockquote | docbook:address | docbook:epigraph | docbook:mediaobject | docbook:screenshot | docbook:task | docbook:productionset | docbook:constraintdef | docbook:msgset | docbook:screen | docbook:literallayout | docbook:programlistingco | docbook:screenco | docbook:programlisting | docbook:synopsis | docbook:bridgehead | docbook:remark | docbook:revhistory | docbook:indexterm | docbook:funcsynopsis | docbook:classsynopsis | docbook:methodsynopsis | docbook:constructorsynopsis | docbook:destructorsynopsis | docbook:fieldsynopsis | docbook:cmdsynopsis | docbook:caution | docbook:important | docbook:note | docbook:tip | docbook:warning | docbook:anchor | docbook:para | docbook:formalpara | docbook:simpara | docbook:annotation) , docbook:varlistentry+
Children: docbook:address, docbook:anchor, docbook:annotation, docbook:bibliolist, docbook:blockquote, docbook:bridgehead, docbook:calloutlist, docbook:caution, docbook:classsynopsis, docbook:cmdsynopsis, docbook:constraintdef, docbook:constructorsynopsis, docbook:destructorsynopsis, docbook:epigraph, docbook:equation, docbook:example, docbook:fieldsynopsis, docbook:figure, docbook:formalpara, docbook:funcsynopsis, docbook:glosslist, docbook:important, docbook:indexterm, docbook:info, docbook:informalequation, docbook:informalexample, docbook:informalfigure, docbook:informaltable, docbook:itemizedlist, docbook:literallayout, docbook:mediaobject, docbook:methodsynopsis, docbook:msgset, docbook:note, docbook:orderedlist, docbook:para, docbook:procedure, docbook:productionset, docbook:programlisting, docbook:programlistingco, docbook:qandaset, docbook:remark, docbook:revhistory, docbook:screen, docbook:screenco, docbook:screenshot, docbook:segmentedlist, docbook:sidebar, docbook:simpara, docbook:simplelist, docbook:synopsis, docbook:table, docbook:task, docbook:tip, docbook:title, docbook:titleabbrev, docbook:variablelist, docbook:varlistentry, docbook:warning

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
spacing restriction of xs:token optional
termlength optional
userlevel optional
vendor optional
version optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Elements docbook:acknowledgements, docbook:annotation, docbook:answer, docbook:appendix, docbook:article, docbook:bibliodiv, docbook:bibliography, docbook:bibliolist, docbook:blockquote, docbook:callout, docbook:calloutlist, docbook:caption, docbook:caution, docbook:chapter, docbook:colophon, docbook:constraintdef, docbook:cover, docbook:dedication, docbook:entry, docbook:example, docbook:figure, docbook:footnote, docbook:glossary, docbook:glossdef, docbook:glossdiv, docbook:glosslist, docbook:important, docbook:index, docbook:indexdiv, docbook:informalexample, docbook:informalfigure, docbook:itemizedlist, docbook:legalnotice, docbook:listitem, docbook:msgexplan, docbook:msgtext, docbook:note, docbook:orderedlist, docbook:para, docbook:partintro, docbook:preface, docbook:procedure, docbook:qandadiv, docbook:qandaset, docbook:question, docbook:refsect1, docbook:refsect2, docbook:refsect3, docbook:refsection, docbook:refsynopsisdiv, docbook:revdescription, docbook:sect1, docbook:sect2, docbook:sect3, docbook:sect4, docbook:sect5, docbook:section, docbook:setindex, docbook:sidebar, docbook:simplesect, docbook:step, docbook:taskprerequisites, docbook:taskrelated, docbook:tasksummary, docbook:td, docbook:textobject, docbook:th, docbook:tip, docbook:toc, docbook:tocdiv, docbook:variablelist, docbook:warning

Source

<xs:element name="variablelist">
  <xs:complexType>
    <xs:sequence>
      <xs:sequence>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
          <xs:element ref="docbook:title"/>
          <xs:element ref="docbook:titleabbrev"/>
        </xs:choice>
        <xs:element minOccurs="0" ref="docbook:info"/>
      </xs:sequence>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="docbook:itemizedlist"/>
        <xs:element ref="docbook:orderedlist"/>
        <xs:element ref="docbook:procedure"/>
        <xs:element ref="docbook:simplelist"/>
        <xs:element ref="docbook:variablelist"/>
        <xs:element ref="docbook:segmentedlist"/>
        <xs:element ref="docbook:glosslist"/>
        <xs:element ref="docbook:bibliolist"/>
        <xs:element ref="docbook:calloutlist"/>
        <xs:element ref="docbook:qandaset"/>
        <xs:element ref="docbook:example"/>
        <xs:element ref="docbook:figure"/>
        <xs:element ref="docbook:table"/>
        <xs:element ref="docbook:equation"/>
        <xs:element ref="docbook:informalexample"/>
        <xs:element ref="docbook:informalfigure"/>
        <xs:element ref="docbook:informaltable"/>
        <xs:element ref="docbook:informalequation"/>
        <xs:element ref="docbook:sidebar"/>
        <xs:element ref="docbook:blockquote"/>
        <xs:element ref="docbook:address"/>
        <xs:element ref="docbook:epigraph"/>
        <xs:element ref="docbook:mediaobject"/>
        <xs:element ref="docbook:screenshot"/>
        <xs:element ref="docbook:task"/>
        <xs:element ref="docbook:productionset"/>
        <xs:element ref="docbook:constraintdef"/>
        <xs:element ref="docbook:msgset"/>
        <xs:element ref="docbook:screen"/>
        <xs:element ref="docbook:literallayout"/>
        <xs:element ref="docbook:programlistingco"/>
        <xs:element ref="docbook:screenco"/>
        <xs:element ref="docbook:programlisting"/>
        <xs:element ref="docbook:synopsis"/>
        <xs:element ref="docbook:bridgehead"/>
        <xs:element ref="docbook:remark"/>
        <xs:element ref="docbook:revhistory"/>
        <xs:element ref="docbook:indexterm"/>
        <xs:element ref="docbook:funcsynopsis"/>
        <xs:element ref="docbook:classsynopsis"/>
        <xs:element ref="docbook:methodsynopsis"/>
        <xs:element ref="docbook:constructorsynopsis"/>
        <xs:element ref="docbook:destructorsynopsis"/>
        <xs:element ref="docbook:fieldsynopsis"/>
        <xs:element ref="docbook:cmdsynopsis"/>
        <xs:element ref="docbook:caution"/>
        <xs:element ref="docbook:important"/>
        <xs:element ref="docbook:note"/>
        <xs:element ref="docbook:tip"/>
        <xs:element ref="docbook:warning"/>
        <xs:element ref="docbook:anchor"/>
        <xs:element ref="docbook:para"/>
        <xs:element ref="docbook:formalpara"/>
        <xs:element ref="docbook:simpara"/>
        <xs:element ref="docbook:annotation"/>
      </xs:choice>
      <xs:element maxOccurs="unbounded" ref="docbook:varlistentry"/>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attributeGroup ref="docbook:db.common.linking.attributes"/>
    <xs:attribute name="spacing">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="compact"/>
          <xs:enumeration value="normal"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="termlength"/>
  </xs:complexType>
</xs:element>

Sample

< section xmlns = "http://docbook.org/ns/docbook" xml:id = "schemas" >

< title>

Where to get the schemas

</ title>

< para>

The latest versions of schemas can be obtained from

< link xl:href = "http://docbook.org/schemas/5x.html" />

. At the time this was written the latest version was 5.0. Individual schemas are available at the following locations:

</ para>

< variablelist>

< varlistentry>

< term>

RELAX NG schema

</ term>

< listitem>

< para>

< link xl:href = "http://docbook.org/xml/5.0/rng/docbook.rng" />

</ para>

</ listitem>

</ varlistentry>

< varlistentry>

< term>

RELAX NG schema in compact syntax

</ term>

< listitem>

< para>

< link xl:href = "http://docbook.org/xml/5.0/rng/docbook.rnc" />
