docbook:note
Element Information

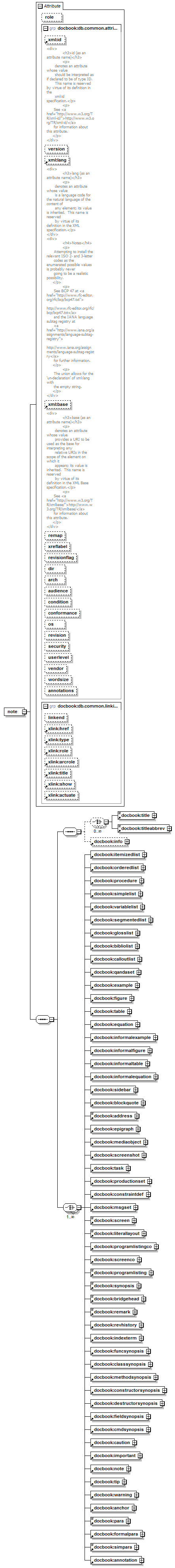

Model
Attributes
| QName | Type | Fixed | Default | Use | Inheritable | Annotation | |
|---|---|---|---|---|---|---|---|
| annotations | optional | ||||||
| arch | optional | ||||||
| audience | optional | ||||||
| condition | optional | ||||||
| conformance | optional | ||||||
| dir | restriction of xs:token | optional | |||||
| linkend | xs:IDREF | optional | |||||
| os | optional | ||||||
| remap | optional | ||||||
| revision | optional | ||||||
| revisionflag | restriction of xs:token | optional | |||||
| role | optional | ||||||
| security | optional | ||||||
| userlevel | optional | ||||||
| vendor | optional | ||||||
| version | optional | ||||||
| wordsize | optional | ||||||
| xlink:actuate | xlink:actuateType | optional | |||||
| xlink:arcrole | xlink:arcroleType | optional | |||||
| xlink:href | xlink:hrefType | optional | |||||
| xlink:role | xlink:roleType | optional | |||||
| xlink:show | xlink:showType | optional | |||||
| xlink:title | xlink:titleAttrType | optional | |||||
| xlink:type | xlink:typeType | optional | |||||
| xml:base | xs:anyURI | optional |
|
||||
| xml:id | xs:ID | optional |
|
||||
| xml:lang | union of(xs:language, restriction of xs:string) | optional |
|
||||
| xreflabel | optional |
Used By
Source
<xs:element name="note"> <xs:complexType> <xs:sequence> <xs:sequence> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="docbook:title"/> <xs:element ref="docbook:titleabbrev"/> </xs:choice> <xs:element minOccurs="0" ref="docbook:info"/> </xs:sequence> <xs:choice maxOccurs="unbounded"> <xs:element ref="docbook:itemizedlist"/> <xs:element ref="docbook:orderedlist"/> <xs:element ref="docbook:procedure"/> <xs:element ref="docbook:simplelist"/> <xs:element ref="docbook:variablelist"/> <xs:element ref="docbook:segmentedlist"/> <xs:element ref="docbook:glosslist"/> <xs:element ref="docbook:bibliolist"/> <xs:element ref="docbook:calloutlist"/> <xs:element ref="docbook:qandaset"/> <xs:element ref="docbook:example"/> <xs:element ref="docbook:figure"/> <xs:element ref="docbook:table"/> <xs:element ref="docbook:equation"/> <xs:element ref="docbook:informalexample"/> <xs:element ref="docbook:informalfigure"/> <xs:element ref="docbook:informaltable"/> <xs:element ref="docbook:informalequation"/> <xs:element ref="docbook:sidebar"/> <xs:element ref="docbook:blockquote"/> <xs:element ref="docbook:address"/> <xs:element ref="docbook:epigraph"/> <xs:element ref="docbook:mediaobject"/> <xs:element ref="docbook:screenshot"/> <xs:element ref="docbook:task"/> <xs:element ref="docbook:productionset"/> <xs:element ref="docbook:constraintdef"/> <xs:element ref="docbook:msgset"/> <xs:element ref="docbook:screen"/> <xs:element ref="docbook:literallayout"/> <xs:element ref="docbook:programlistingco"/> <xs:element ref="docbook:screenco"/> <xs:element ref="docbook:programlisting"/> <xs:element ref="docbook:synopsis"/> <xs:element ref="docbook:bridgehead"/> <xs:element ref="docbook:remark"/> <xs:element ref="docbook:revhistory"/> <xs:element ref="docbook:indexterm"/> <xs:element ref="docbook:funcsynopsis"/> <xs:element ref="docbook:classsynopsis"/> <xs:element ref="docbook:methodsynopsis"/> <xs:element ref="docbook:constructorsynopsis"/> <xs:element ref="docbook:destructorsynopsis"/> <xs:element ref="docbook:fieldsynopsis"/> <xs:element ref="docbook:cmdsynopsis"/> <xs:element ref="docbook:caution"/> <xs:element ref="docbook:important"/> <xs:element ref="docbook:note"/> <xs:element ref="docbook:tip"/> <xs:element ref="docbook:warning"/> <xs:element ref="docbook:anchor"/> <xs:element ref="docbook:para"/> <xs:element ref="docbook:formalpara"/> <xs:element ref="docbook:simpara"/> <xs:element ref="docbook:annotation"/> </xs:choice> </xs:sequence> <xs:attribute name="role"/> <xs:attributeGroup ref="docbook:db.common.attributes"/> <xs:attributeGroup ref="docbook:db.common.linking.attributes"/> </xs:complexType> </xs:element> |
Sample
|
< section xmlns = "http://docbook.org/ns/docbook" xml:id = "introduction-ns" > |
|
[...] |
|
< title> |
|
Finally in a namespace |
|
</ title> |
|
< para> |
|
All DocBook V5.0 elements are in the namespace |
|
< uri> |
|
http://docbook.org/ns/docbook |
|
</ uri> |
|
. |
|
< acronym> |
|
XML |
|
< alt> |
|
Extensible Markup Language |
|
</ alt> |
|
</ acronym> |
|
namespaces are used to distinguish between different element sets. In the last few years, almost all new XML grammars have used their own namespace. It is easy to create compound documents that contain elements from different XML vocabularies. DocBook V5.0 is following this design rule. Using namespaces in your documents is very easy. Consider this simple article marked up in DocBook V4.5: |
|
</ para> |
|
<article> <title>Sample article</title> <para>This is a really short article.</para></article> |
|
</ programlisting> |
|
< para> |
|
The corresponding DocBook V5.0 article will look very similar: |
|
</ para> |
|
<article xmlns="http://docbook.org/ns/docbook" …> <title>Sample article</title> <para>This is a really short article.</para></article> |
|
</ programlisting> |
|
< para> |
|
The only change is the addition of a default namespace declaration ( |
|
< code> |
|
xmlns="http://docbook.org/ns/docbook" |
|
</ code> |
|
) on the root element. This declaration applies the namespace to the root element and all nested elements. Each element is now uniquely identified by its local name and namespace. |
|
</ para> |
|
< note> |
|
< para> |
|
The namespace name |
|
< uri> |
|
http://docbook.org/ns/docbook |
|
</ uri> |
|
serves only as an identifier. This resource is not fetched during processing of DocBook documents, and you are not required to have an Internet connection during processing. If you access the namespace URI with a browser, you will find a short explanatory document about the namespace. In the future this document will probably conform to (some version of) RDDL and provide pointers to related resources. |
|
</ para> |
|
</ note> |
|
</ section> |
