docbook:informaltable

Element Information

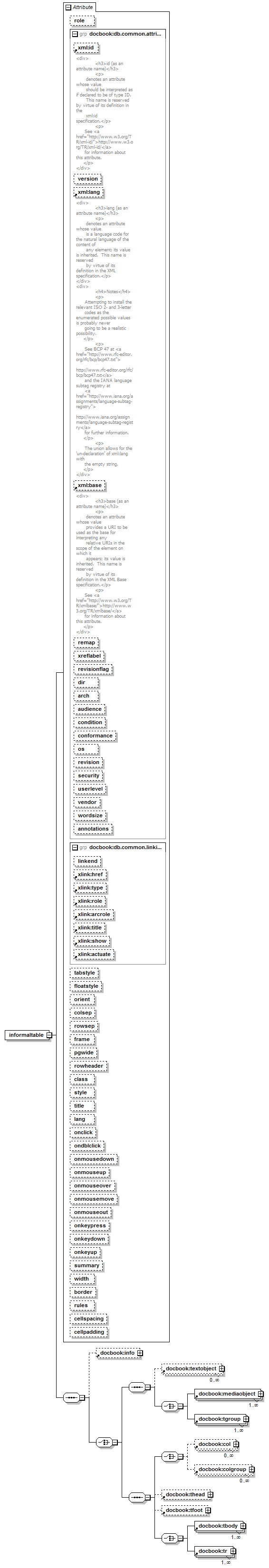

Model

docbook:info{0,1} , ((docbook:textobject* , (docbook:mediaobject+ | docbook:tgroup+)) | ((docbook:col* | docbook:colgroup*) , docbook:thead{0,1} , docbook:tfoot{0,1} , (docbook:tbody+ | docbook:tr+)))
Children: docbook:col, docbook:colgroup, docbook:info, docbook:mediaobject, docbook:tbody, docbook:textobject, docbook:tfoot, docbook:tgroup, docbook:thead, docbook:tr

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
border xs:NMTOKEN optional
cellpadding optional
cellspacing optional
class optional
colsep restriction of xs:token optional
condition optional
conformance optional
dir restriction of xs:token optional
floatstyle optional
frame restriction of xs:token optional
lang optional
linkend xs:IDREF optional
onclick optional
ondblclick optional
onkeydown optional
onkeypress optional
onkeyup optional
onmousedown optional
onmousemove optional
onmouseout optional
onmouseover optional
onmouseup optional
orient restriction of xs:token optional
os optional
pgwide restriction of xs:token optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
rowheader restriction of xs:token optional
rowsep restriction of xs:token optional
rules restriction of xs:token optional
security optional
style optional
summary optional
tabstyle optional
title optional
userlevel optional
vendor optional
version optional
width optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Elements docbook:acknowledgements, docbook:annotation, docbook:answer, docbook:appendix, docbook:article, docbook:bibliodiv, docbook:bibliography, docbook:bibliolist, docbook:blockquote, docbook:callout, docbook:calloutlist, docbook:caption, docbook:caution, docbook:chapter, docbook:colophon, docbook:constraintdef, docbook:cover, docbook:dedication, docbook:entry, docbook:example, docbook:figure, docbook:footnote, docbook:glossary, docbook:glossdef, docbook:glossdiv, docbook:glosslist, docbook:important, docbook:index, docbook:indexdiv, docbook:informalexample, docbook:informalfigure, docbook:itemizedlist, docbook:legalnotice, docbook:listitem, docbook:msgexplan, docbook:msgtext, docbook:note, docbook:orderedlist, docbook:para, docbook:partintro, docbook:preface, docbook:procedure, docbook:qandadiv, docbook:qandaset, docbook:question, docbook:refsect1, docbook:refsect2, docbook:refsect3, docbook:refsection, docbook:refsynopsisdiv, docbook:revdescription, docbook:sect1, docbook:sect2, docbook:sect3, docbook:sect4, docbook:sect5, docbook:section, docbook:setindex, docbook:sidebar, docbook:simplesect, docbook:step, docbook:taskprerequisites, docbook:taskrelated, docbook:tasksummary, docbook:td, docbook:textobject, docbook:th, docbook:tip, docbook:toc, docbook:tocdiv, docbook:variablelist, docbook:warning

Source

<xs:element name="informaltable">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" ref="docbook:info"/>
      <xs:choice>
        <xs:sequence>
          <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:textobject"/>
          <xs:choice>
            <xs:element maxOccurs="unbounded" ref="docbook:mediaobject"/>
            <xs:element maxOccurs="unbounded" ref="docbook:tgroup"/>
          </xs:choice>
        </xs:sequence>
        <xs:sequence>
          <xs:choice>
            <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:col"/>
            <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:colgroup"/>
          </xs:choice>
          <xs:element minOccurs="0" ref="docbook:thead"/>
          <xs:element minOccurs="0" ref="docbook:tfoot"/>
          <xs:choice>
            <xs:element maxOccurs="unbounded" ref="docbook:tbody"/>
            <xs:element maxOccurs="unbounded" ref="docbook:tr"/>
          </xs:choice>
        </xs:sequence>
      </xs:choice>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attributeGroup ref="docbook:db.common.linking.attributes"/>
    <xs:attribute name="tabstyle"/>
    <xs:attribute name="floatstyle"/>
    <xs:attribute name="orient">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="land"/>
          <xs:enumeration value="port"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="colsep">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="rowsep">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="frame">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="all"/>
          <xs:enumeration value="bottom"/>
          <xs:enumeration value="none"/>
          <xs:enumeration value="sides"/>
          <xs:enumeration value="top"/>
          <xs:enumeration value="topbot"/>
          <xs:enumeration value="void"/>
          <xs:enumeration value="above"/>
          <xs:enumeration value="below"/>
          <xs:enumeration value="hsides"/>
          <xs:enumeration value="lhs"/>
          <xs:enumeration value="rhs"/>
          <xs:enumeration value="vsides"/>
          <xs:enumeration value="box"/>
          <xs:enumeration value="border"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="pgwide">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="rowheader">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="firstcol"/>
          <xs:enumeration value="norowheader"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="class"/>
    <xs:attribute name="style"/>
    <xs:attribute name="title"/>
    <xs:attribute name="lang"/>
    <xs:attribute name="onclick"/>
    <xs:attribute name="ondblclick"/>
    <xs:attribute name="onmousedown"/>
    <xs:attribute name="onmouseup"/>
    <xs:attribute name="onmouseover"/>
    <xs:attribute name="onmousemove"/>
    <xs:attribute name="onmouseout"/>
    <xs:attribute name="onkeypress"/>
    <xs:attribute name="onkeydown"/>
    <xs:attribute name="onkeyup"/>
    <xs:attribute name="summary"/>
    <xs:attribute name="width"/>
    <xs:attribute name="border" type="xs:NMTOKEN"/>
    <xs:attribute name="rules">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="none"/>
          <xs:enumeration value="groups"/>
          <xs:enumeration value="rows"/>
          <xs:enumeration value="cols"/>
          <xs:enumeration value="all"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="cellspacing"/>
    <xs:attribute name="cellpadding"/>
  </xs:complexType>
</xs:element>
