docbook:tgroup

Element Information

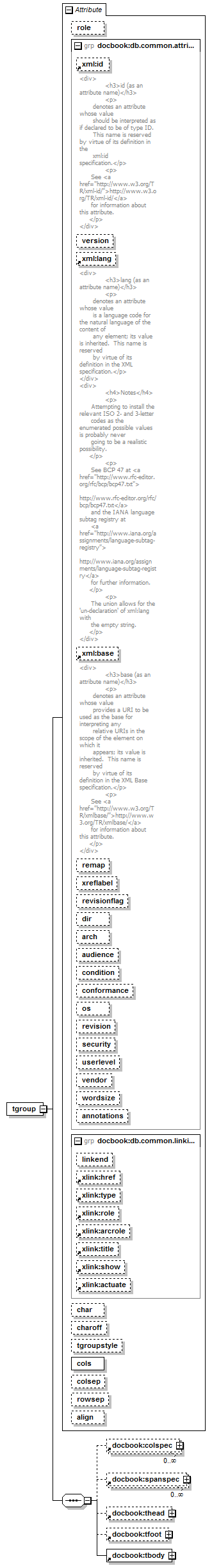

Model

docbook:colspec* , docbook:spanspec* , docbook:thead{0,1} , docbook:tfoot{0,1} , docbook:tbody
Children: docbook:colspec, docbook:spanspec, docbook:tbody, docbook:tfoot, docbook:thead

Attributes

QName Type Fixed Default Use Inheritable Annotation
align restriction of xs:token optional
annotations optional
arch optional
audience optional
char optional
charoff optional
cols xs:NMTOKEN required
colsep restriction of xs:token optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
rowsep restriction of xs:token optional
security optional
tgroupstyle optional
userlevel optional
vendor optional
version optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Elements docbook:informaltable, docbook:table

Source

<xs:element name="tgroup">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:colspec"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="docbook:spanspec"/>
      <xs:element minOccurs="0" ref="docbook:thead"/>
      <xs:element minOccurs="0" ref="docbook:tfoot"/>
      <xs:element ref="docbook:tbody"/>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attributeGroup ref="docbook:db.common.linking.attributes"/>
    <xs:attribute name="char"/>
    <xs:attribute name="charoff"/>
    <xs:attribute name="tgroupstyle"/>
    <xs:attribute name="cols" use="required" type="xs:NMTOKEN"/>
    <xs:attribute name="colsep">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="rowsep">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="align">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="center"/>
          <xs:enumeration value="char"/>
          <xs:enumeration value="justify"/>
          <xs:enumeration value="left"/>
          <xs:enumeration value="right"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

Sample

< table xmlns = "http://docbook.org/ns/docbook" xml:id = "t.schema-comparison" >

< title>

Schema Comparison

</ title>

< tgroup cols = "6" >

< colspec colwidth = "4*" />

< colspec colwidth = "1*" align = "center" />

< colspec colwidth = "1*" align = "center" />

< colspec colwidth = "1*" align = "center" />

< colspec colwidth = "1*" align = "center" />

< colspec colwidth = "1*" align = "center" />

< thead>

< row>

< entry>

Description

</ entry>

< entry>

DTD

</ entry>

< entry>

W3C XML Schema

</ entry>

< entry>

W3C XML Schema + Schematron
