onMessage
Element Information

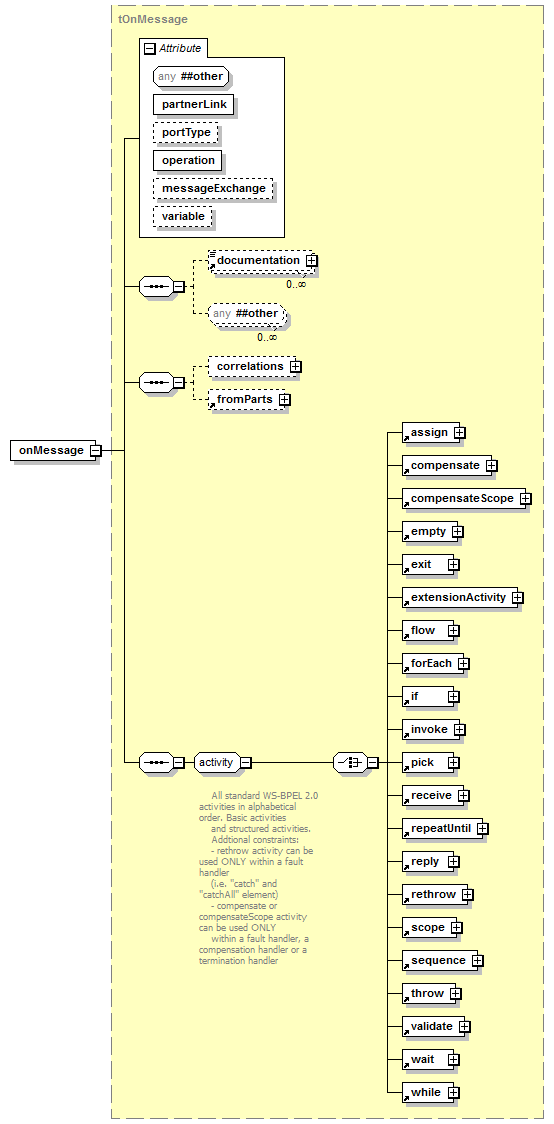

Model
documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , correlations{0,1} , fromParts{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, correlations, documentation, empty, exit, extensionActivity, flow, forEach, fromParts, if, invoke, pick, receive, repeatUntil, reply, rethrow, scope, sequence, throw, validate, wait, while
Attributes
| QName | Type | Fixed | Default | Use | Inheritable | Annotation |
|---|---|---|---|---|---|---|
| messageExchange | xsd:NCName | optional | ||||
| operation | xsd:NCName | required | ||||
| partnerLink | xsd:NCName | required | ||||
| portType | xsd:QName | optional | ||||
| variable | BPELVariableName | optional | ||||
| Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace' | ||||||
Used By
| Complex Type | tPick |
Source
<xsd:element name="onMessage" type="tOnMessage"/> |
