tSequence

Complex Type Information

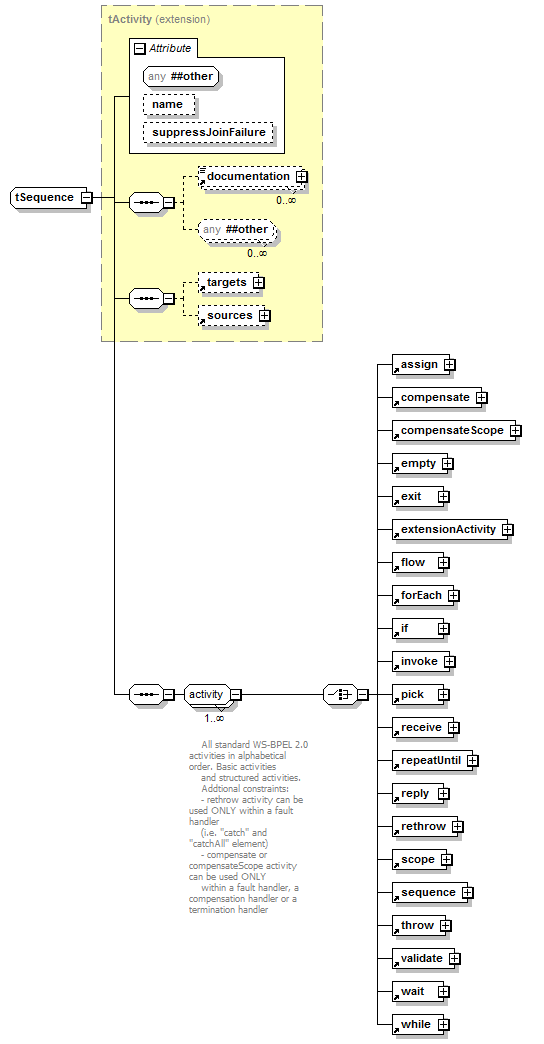

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , targets{0,1} , sources{0,1} , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, documentation, empty, exit, extensionActivity, flow, forEach, if, invoke, pick, receive, repeatUntil, reply, rethrow, scope, sequence, sources, targets, throw, validate, wait, while

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xsd:NCName optional
suppressJoinFailure tBoolean optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element sequence

Source

<xsd:complexType name="tSequence">
  <xsd:complexContent>
    <xsd:extension base="tActivity">
      <xsd:sequence>
        <xsd:group ref="activity" minOccurs="1" maxOccurs="unbounded"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
