tCatch

Complex Type Information

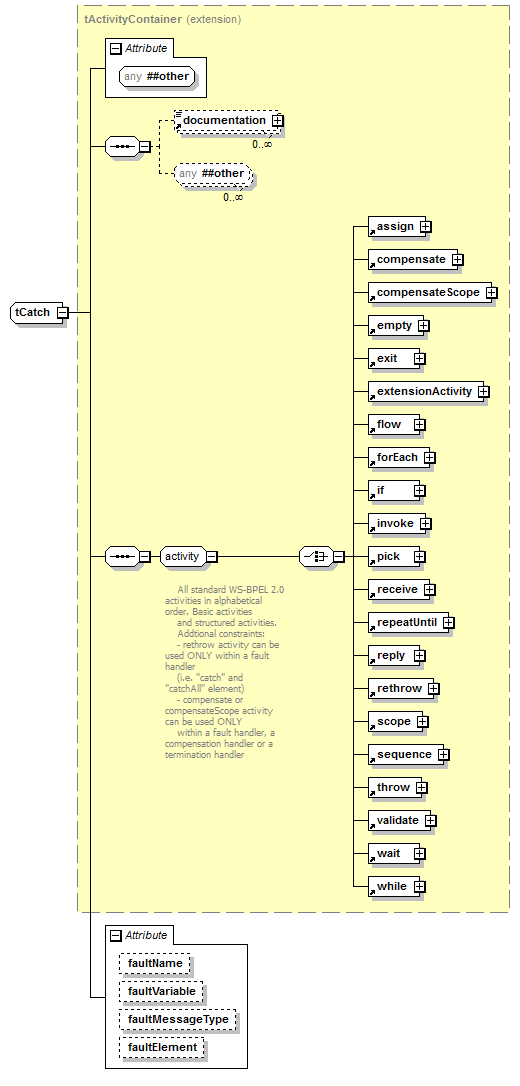

Model

documentation* , ANY element from ANY namespace OTHER than 'No Namespace' , (assign | compensate | compensateScope | empty | exit | extensionActivity | flow | forEach | if | invoke | pick | receive | repeatUntil | reply | rethrow | scope | sequence | throw | validate | wait | while)
Children: assign, compensate, compensateScope, documentation, empty, exit, extensionActivity, flow, forEach, if, invoke, pick, receive, repeatUntil, reply, rethrow, scope, sequence, throw, validate, wait, while

Attributes

QName Type Fixed Default Use Inheritable Annotation
faultElement xsd:QName optional
faultMessageType xsd:QName optional
faultName xsd:QName optional
faultVariable BPELVariableName optional
Wildcard: ANY attribute from ANY namespace OTHER than 'No Namespace'

Used By

Element catch

Source

<xsd:complexType name="tCatch">
  <xsd:complexContent>
    <xsd:extension base="tActivityContainer">
      <xsd:attribute name="faultName" type="xsd:QName"/>
      <xsd:attribute name="faultVariable" type="BPELVariableName"/>
      <xsd:attribute name="faultMessageType" type="xsd:QName"/>
      <xsd:attribute name="faultElement" type="xsd:QName"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
