BiophysicsNetworkElements

The elements in biophysics needed to specify a network connection.
    Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as
opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0

Element Group Information

Model

Used By

Complex Type Level3Biophysics

Source

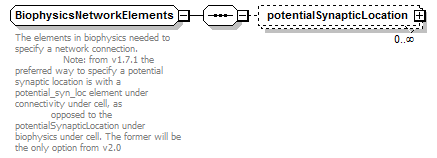

<xs:group name="BiophysicsNetworkElements">
  <xs:annotation>
    <xs:documentation>The elements in biophysics needed to specify a network connection. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="potentialSynapticLocation" type="PotentialSynapticLocation" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
