Level3Biophysics

Biophysics of Level3 cell, including specification for allowable synaptic locations.
        Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as
opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0

Complex Type Information

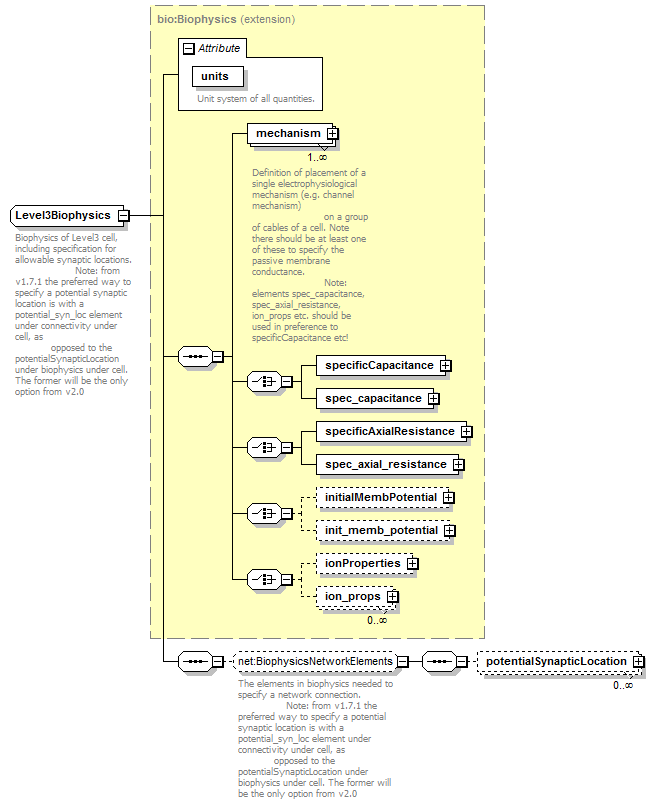

Model

mechanism+ , (specificCapacitance | spec_capacitance) , (specificAxialResistance | spec_axial_resistance) , (initialMembPotential{0,1} | init_memb_potential{0,1}) , (ionProperties{0,1} | ion_props*) , potentialSynapticLocation*
Children: init_memb_potential, initialMembPotential, ionProperties, ion_props, mechanism, potentialSynapticLocation, spec_axial_resistance, spec_capacitance, specificAxialResistance, specificCapacitance

Attributes

QName Type Fixed Default Use Inheritable Annotation
units Units required
Unit system of all quantities.

Used By

Element Level3Cell/biophysics

Source

<xs:complexType name="Level3Biophysics">
  <xs:annotation>
    <xs:documentation>Biophysics of Level3 cell, including specification for allowable synaptic locations. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="bio:Biophysics">
      <xs:sequence>
        <xs:group ref="net:BiophysicsNetworkElements" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
