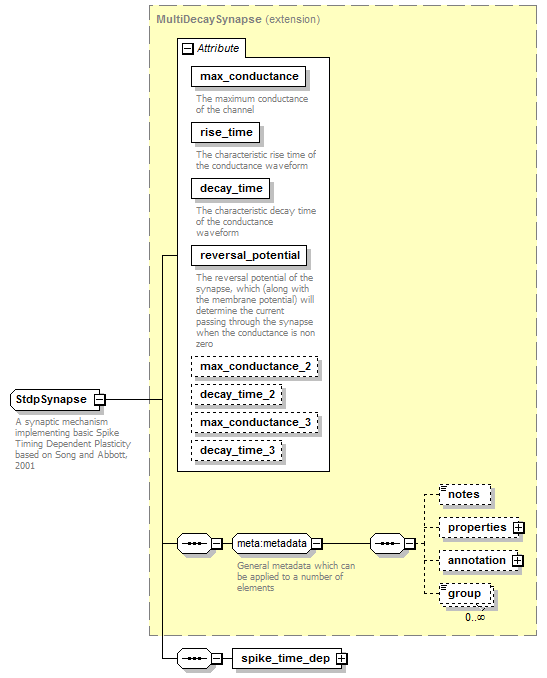

StdpSynapse

A synaptic mechanism implementing basic Spike Timing Dependent Plasticity based on Song and Abbott, 2001

Complex Type Information

Model

notes{0,1} , properties{0,1} , annotation{0,1} , group* , spike_time_dep
Children: annotation, group, notes, properties, spike_time_dep

Attributes

QName Type Fixed Default Use Inheritable Annotation
decay_time TimeConstantValue required
The characteristic decay time of the conductance waveform
decay_time_2 TimeConstantValue optional
decay_time_3 TimeConstantValue optional
max_conductance ConductanceValue required
The maximum conductance of the channel
max_conductance_2 ConductanceValue optional
max_conductance_3 ConductanceValue optional
reversal_potential VoltageValue required
The reversal potential of the synapse, which (along with the membrane potential) will determine the current passing through the synapse when the conductance is non zero
rise_time TimeConstantValueIncZero required
The characteristic rise time of the conductance waveform

Used By

Element SynapseType/stdp_syn

Source

<xs:complexType name="StdpSynapse">
  <xs:annotation>
    <xs:documentation>A synaptic mechanism implementing basic Spike Timing Dependent Plasticity based on Song and Abbott, 2001</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="MultiDecaySynapse">
      <xs:annotation>
        <xs:documentation>Extends MultiDecaySynapse</xs:documentation>
      </xs:annotation>
      <xs:sequence>
        <xs:element name="spike_time_dep" type="StdpDep"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
