stdp_syn

A synaptic mechanism implementing basic Spike Timing Dependent Plasticity based on Song and Abbott, 2001

Element Information

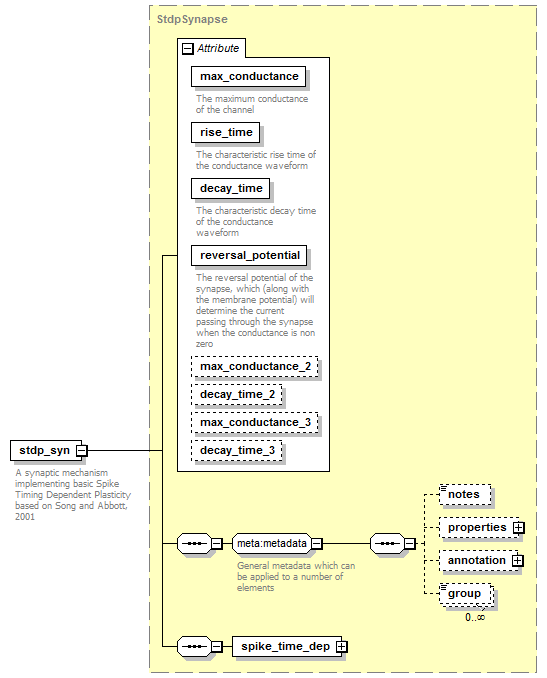

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
decay_time TimeConstantValue required
The characteristic decay time of the conductance waveform
decay_time_2 TimeConstantValue optional
decay_time_3 TimeConstantValue optional
max_conductance ConductanceValue required
The maximum conductance of the channel
max_conductance_2 ConductanceValue optional
max_conductance_3 ConductanceValue optional
reversal_potential VoltageValue required
The reversal potential of the synapse, which (along with the membrane potential) will determine the current passing through the synapse when the conductance is non zero
rise_time TimeConstantValueIncZero required
The characteristic rise time of the conductance waveform

Source

<xs:element name="stdp_syn" type="StdpSynapse">
  <xs:annotation>
    <xs:documentation>A synaptic mechanism implementing basic Spike Timing Dependent Plasticity based on Song and Abbott, 2001</xs:documentation>
  </xs:annotation>
</xs:element>

Sample
