IonConcentration

Specification of how an ion concentration alters with time, e.g. calcium dynamics. This may influence other
channels (e.g. Ca dependent K channels), and other mechanisms may have a contribution to the concentration of the ion specified here.

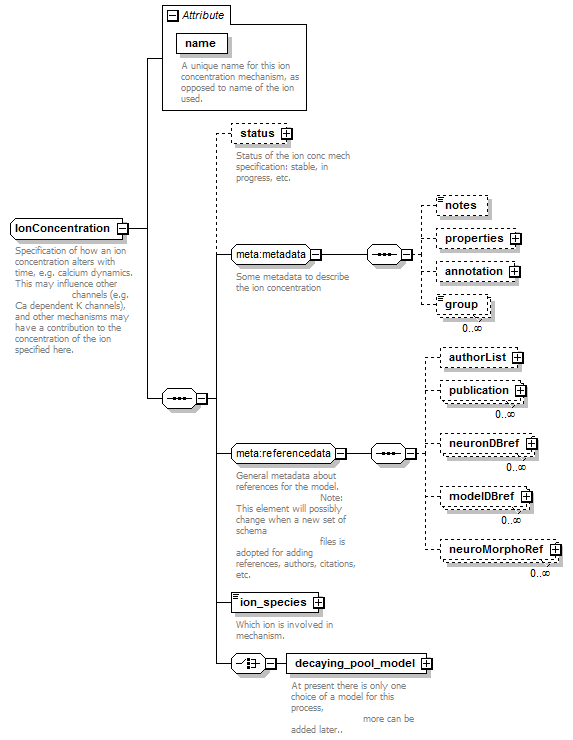

Complex Type Information

Model

status{0,1} , notes{0,1} , properties{0,1} , annotation{0,1} , group* , authorList{0,1} , publication* , neuronDBref* , modelDBref* , neuroMorphoRef* , ion_species , (decaying_pool_model)
Children: annotation, authorList, decaying_pool_model, group, ion_species, modelDBref, neuroMorphoRef, neuronDBref, notes, properties, publication, status

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xs:string required
A unique name for this ion concentration mechanism, as opposed to name of the ion used.

Used By

Element ChannelML/ion_concentration

Source

<xs:complexType name="IonConcentration">
  <xs:annotation>
    <xs:documentation>Specification of how an ion concentration alters with time, e.g. calcium dynamics. This may influence other channels (e.g. Ca dependent K channels), and other mechanisms may have a contribution to the concentration of the ion specified here.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="status" type="meta:Status" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Status of the ion conc mech specification: stable, in progress, etc.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:group ref="meta:metadata">
      <xs:annotation>
        <xs:documentation>Some metadata to describe the ion concentration</xs:documentation>
      </xs:annotation>
    </xs:group>
    <xs:group ref="meta:referencedata"/>
    <xs:element name="ion_species" type="IonSpecies">
      <xs:annotation>
        <xs:documentation>Which ion is involved in mechanism.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="decaying_pool_model" type="DecayingPoolModel">
        <xs:annotation>
          <xs:documentation>At present there is only one choice of a model for this process, more can be added later..</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
  <xs:attribute name="name" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>A unique name for this ion concentration mechanism, as opposed to name of the ion used.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
