ion_concentration

Specification of how an ion concentration alters with time, e.g. calcium dynamics. This may influence other
channels (e.g. Ca dependent K channels), and other mechanisms may have a contribution to the concentration of the ion specified here
(e.g. a channel transmitting calcium).

Element Information

Model

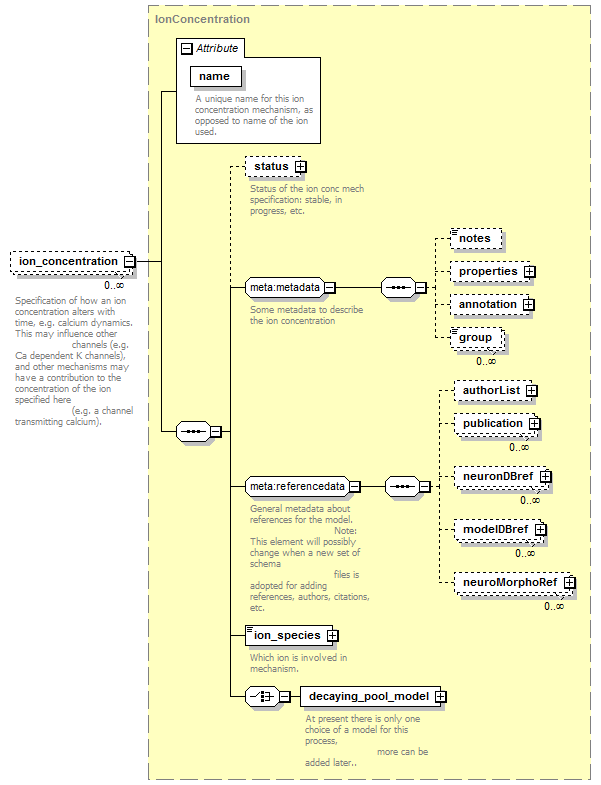

status{0,1} , notes{0,1} , properties{0,1} , annotation{0,1} , group* , authorList{0,1} , publication* , neuronDBref* , modelDBref* , neuroMorphoRef* , ion_species , (decaying_pool_model)
Children: annotation, authorList, decaying_pool_model, group, ion_species, modelDBref, neuroMorphoRef, neuronDBref, notes, properties, publication, status

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xs:string required
A unique name for this ion concentration mechanism, as opposed to name of the ion used.

Source

<xs:element name="ion_concentration" type="IonConcentration" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Specification of how an ion concentration alters with time, e.g. calcium dynamics. This may influence other channels (e.g. Ca dependent K channels), and other mechanisms may have a contribution to the concentration of the ion specified here (e.g. a channel transmitting calcium).</xs:documentation>
  </xs:annotation>
</xs:element>

Sample
