mei:ineume

(interrupted neume) – A graphically interrupted neume; that is, a neume
which is logically a single entity but is written using multiple signs.

Element Information

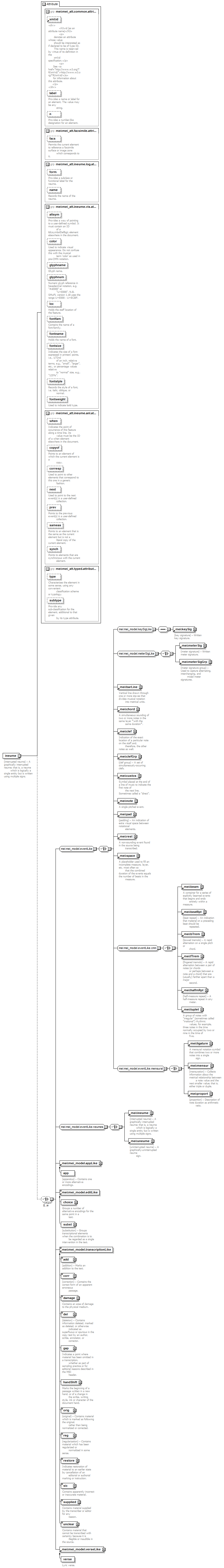

Model

(mei:keySig) | mei:meterSig | mei:meterSigGrp | mei:barLine | mei:chord | mei:clef | mei:clefGrp | mei:custos | mei:note | mei:pad | mei:rest | mei:space | mei:beam | mei:beatRpt | mei:bTrem | mei:fTrem | mei:halfmRpt | mei:tuplet | mei:ligature | mei:mensur | mei:proport | mei:ineume | mei:uneume | mei:mei_model.appLike | mei:mei_model.editLike | mei:mei_model.transcriptionLike | mei:mei_model.verseLike
Children: mei:bTrem, mei:barLine, mei:beam, mei:beatRpt, mei:chord, mei:clef, mei:clefGrp, mei:custos, mei:fTrem, mei:halfmRpt, mei:ineume, mei:keySig, mei:ligature, mei:mei_model.appLike, mei:mei_model.editLike, mei:mei_model.transcriptionLike, mei:mei_model.verseLike, mei:mensur, mei:meterSig, mei:meterSigGrp, mei:note, mei:pad, mei:proport, mei:rest, mei:space, mei:tuplet, mei:uneume

Attributes

QName Type Fixed Default Use Inheritable Annotation
altsym mei:mei_data.URI optional
Provides a way of pointing to a user-defined symbol. It must contain an ID
of a <symbolDef> element elsewhere in the document.
color mei:mei_data.COLOR optional
Used to indicate visual appearance. Do not confuse this with the musical
term 'color' as used in pre-CMN notation.
copyof mei:mei_data.URI optional
Points to an element of which the current element is a
copy.
corresp restriction of list of mei:mei_data.URI optional
Used to point to other elements that correspond to this one in a generic
fashion.
facs restriction of list of mei:mei_data.URI optional
Permits the current element to reference a facsimile surface or image zone
which corresponds to it.
fontfam mei:mei_data.FONTFAMILY optional
Contains the name of a font-family.
fontname mei:mei_data.FONTNAME optional
Holds the name of a font.
fontsize mei:mei_data.FONTSIZE optional
Indicates the size of a font expressed in printers' points, i.e., 1/72nd
of an inch, relative terms, e.g., "small", "larger", etc., or percentage values relative
to "normal" size, e.g., "125%".
fontstyle mei:mei_data.FONTSTYLE optional
Records the style of a font, i.e, italic, oblique, or
normal.
fontweight mei:mei_data.FONTWEIGHT optional
Used to indicate bold type.
form mei:mei_data.INEUMEFORM optional
Provides a subclass or functional label for the neume.
glyphname xs:string optional
Glyph name.
glyphnum restriction of xs:string optional
Numeric glyph reference in hexadecimal notation, e.g. "#xE000" or
"U+E000". N.B. SMuFL version 1.18 uses the range U+E000 - U+ECBF.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
loc mei:mei_data.STAFFLOC optional
Holds the staff location of the feature.
n optional
Provides a number-like designation for an element.
name mei:mei_data.INEUMENAME optional
Records the name of the neume.
next restriction of list of mei:mei_data.URI optional
Used to point to the next event(s) in a user-defined
collection.
prev restriction of list of mei:mei_data.URI optional
Points to the previous event(s) in a user-defined
collection.
sameas restriction of list of mei:mei_data.URI optional
Points to an element that is the same as the current element but is not a
literal copy of the current element.
subtype xs:NMTOKEN optional
Provide any sub-classification for the element, additional to that given
by its type attribute.
synch restriction of list of mei:mei_data.URI optional
Points to elements that are synchronous with the current
element.
type xs:NMTOKEN optional
Characterizes the element in some sense, using any convenient
classification scheme or typology.
when mei:mei_data.URI optional
Indicates the point of occurrence of this feature along a time line. Its
value must be the ID of a when element elsewhere in the document.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Element Groups mei:mei_model.eventLike.neumes, mei:mei_model.eventLike.neumes_alternation, mei:mei_model.eventLike.neumes_sequence, mei:mei_model.eventLike.neumes_sequenceOptional, mei:mei_model.eventLike.neumes_sequenceOptionalRepeatable, mei:mei_model.eventLike.neumes_sequenceRepeatable

Source

<xs:element name="ineume">
  <xs:annotation>
    <xs:documentation>(interrupted neume) – A graphically interrupted neume; that is, a neume which is logically a single entity but is written using multiple signs.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:group ref="mei:mei_model.eventLike"/>
      <xs:group ref="mei:mei_model.eventLike.neumes"/>
      <xs:element ref="mei:mei_model.appLike"/>
      <xs:element ref="mei:mei_model.editLike"/>
      <xs:element ref="mei:mei_model.transcriptionLike"/>
      <xs:element ref="mei:mei_model.verseLike"/>
    </xs:choice>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.facsimile.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.ineume.log.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.ineume.vis.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.ineume.anl.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.typed.attributes"/>
  </xs:complexType>
</xs:element>

Sample
