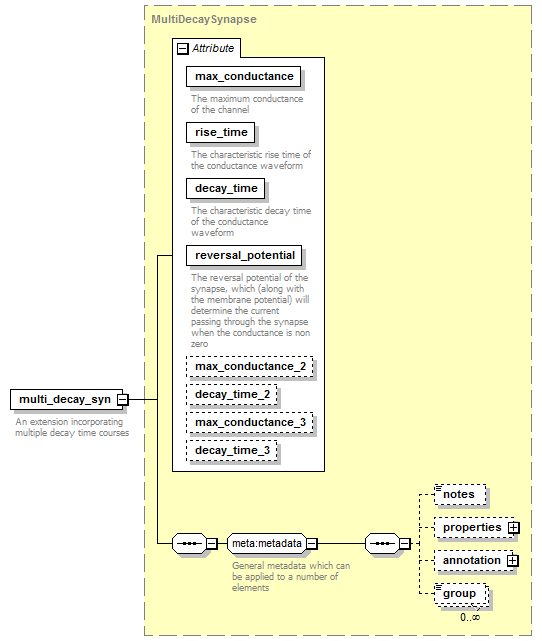

multi_decay_syn

An extension incorporating multiple decay time courses

Element Information

Model

notes{0,1} , properties{0,1} , annotation{0,1} , group*
Children: annotation, group, notes, properties

Attributes

QName Type Fixed Default Use Inheritable Annotation
decay_time TimeConstantValue required
The characteristic decay time of the conductance waveform
decay_time_2 TimeConstantValue optional
decay_time_3 TimeConstantValue optional
max_conductance ConductanceValue required
The maximum conductance of the channel
max_conductance_2 ConductanceValue optional
max_conductance_3 ConductanceValue optional
reversal_potential VoltageValue required
The reversal potential of the synapse, which (along with the membrane potential) will determine the current passing through the synapse when the conductance is non zero
rise_time TimeConstantValueIncZero required
The characteristic rise time of the conductance waveform

Source

<xs:element name="multi_decay_syn" type="MultiDecaySynapse">
  <xs:annotation>
    <xs:documentation>An extension incorporating multiple decay time courses</xs:documentation>
  </xs:annotation>
</xs:element>

Sample
