table_settings

Preferences for the table of values for the rate equations, e.g. used in the TABLE statement in NMODL, or in tabchannel GENESIS objects

Element Information

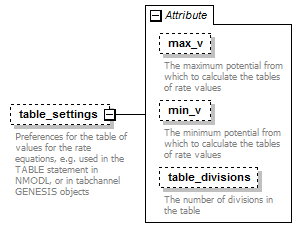

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
max_v xs:double 70 optional
The maximum potential from which to calculate the tables of rate values
min_v xs:double -100 optional
The minimum potential from which to calculate the tables of rate values
table_divisions xs:positiveInteger 200 optional
The number of divisions in the table

Source

<xs:element name="table_settings" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Preferences for the table of values for the rate equations, e.g. used in the TABLE statement in NMODL, or in tabchannel GENESIS objects</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="max_v" type="xs:double" default="70">
      <xs:annotation>
        <xs:documentation>The maximum potential from which to calculate the tables of rate values</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="min_v" type="xs:double" default="-100">
      <xs:annotation>
        <xs:documentation>The minimum potential from which to calculate the tables of rate values</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="table_divisions" type="xs:positiveInteger" default="200">
      <xs:annotation>
        <xs:documentation>The number of divisions in the table</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>
