channel_type

Specification of a voltage or ligand gated membrane conductance mechanism

Element Information

Model

status{0,1} , notes{0,1} , properties{0,1} , annotation{0,1} , group* , authorList{0,1} , publication* , neuronDBref* , modelDBref* , neuroMorphoRef* , parameters{0,1} , current_voltage_relation , hh_gate* , ks_gate* , impl_prefs{0,1}
Children: annotation, authorList, current_voltage_relation, group, hh_gate, impl_prefs, ks_gate, modelDBref, neuroMorphoRef, neuronDBref, notes, parameters, properties, publication, status

Attributes

QName Type Fixed Default Use Inheritable Annotation
density YesNo yes optional
Is this a specification of conductance per unit area? Note: almost all channel mechanisms to far have been density mechanisms.
This attribute is subject to change when use of ChannelML for single channel conductances is supported.
name xs:string required
A unique name for the channel mechanism

Source

<xs:element name="channel_type" type="ChannelType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Specification of a voltage or ligand gated membrane conductance mechanism</xs:documentation>
  </xs:annotation>
</xs:element>

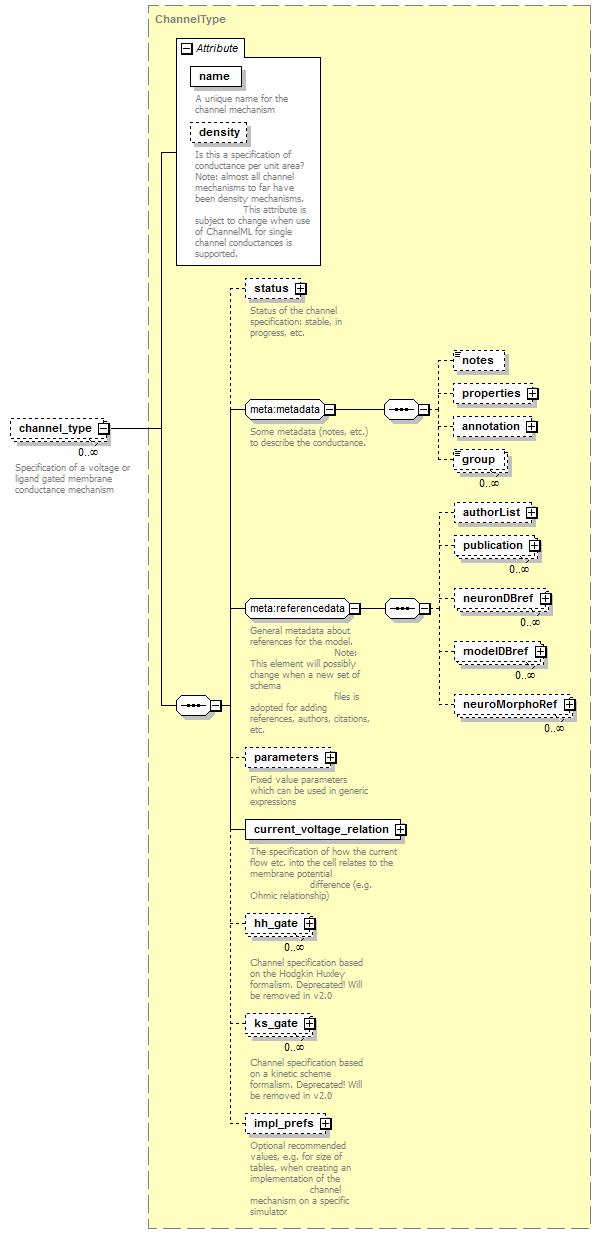

Sample
