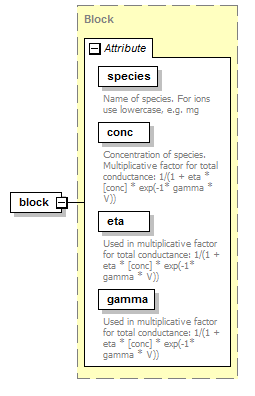

block

Element Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
conc ConcentrationValue required
Concentration of species. Multiplicative factor for total conductance: 1/(1 + eta * [conc] * exp(-1* gamma * V))
eta xs:double required
Used in multiplicative factor for total conductance: 1/(1 + eta * [conc] * exp(-1* gamma * V))
gamma xs:double required
Used in multiplicative factor for total conductance: 1/(1 + eta * [conc] * exp(-1* gamma * V))
species xs:string required
Name of species. For ions use lowercase, e.g. mg

Source

<xs:element name="block" type="Block"/>

Sample
