SpatialLayout

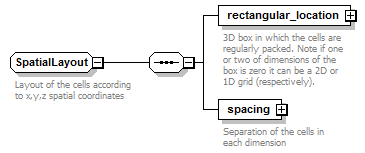

Layout of the cells according to x,y,z spatial coordinates

Element Group Information

Model

Used By

Complex Type GridArrangement

Source

<xs:group name="SpatialLayout">
  <xs:annotation>
    <xs:documentation>Layout of the cells according to x,y,z spatial coordinates</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="rectangular_location" type="meta:RectangularBox">
      <xs:annotation>
        <xs:documentation>3D box in which the cells are regularly packed. Note if one or two of dimensions of the box is zero it can be a 2D or 1D grid (respectively).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="spacing">
      <xs:annotation>
        <xs:documentation>Separation of the cells in each dimension</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="x" type="xs:double"/>
        <xs:attribute name="y" type="xs:double"/>
        <xs:attribute name="z" type="xs:double"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:group>
