RectangularBox

A Rectangular Box for locating cells in 3D.

Complex Type Information

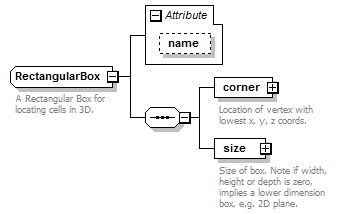

Model

Children: corner, size

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xs:string optional

Source

<xs:complexType name="RectangularBox">
  <xs:annotation>
    <xs:documentation>A Rectangular Box for locating cells in 3D.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="corner" type="Point">
      <xs:annotation>
        <xs:documentation>Location of vertex with lowest x, y, z coords.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="size">
      <xs:annotation>
        <xs:documentation>Size of box. Note if width, height or depth is zero, implies a lower dimension box, e.g. 2D plane.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="width" type="xs:double"/>
        <xs:attribute name="height" type="xs:double"/>
        <xs:attribute name="depth" type="xs:double"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="name" type="xs:string" use="optional"/>
</xs:complexType>
