PotentialSynapticLocation

Subset of sections on cell where synaptic connection of a particular type is allowed.
    Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as
opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0

Complex Type Information

Model

Used By

Source

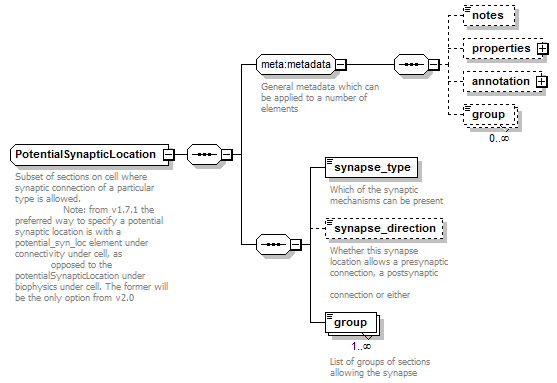

<xs:complexType name="PotentialSynapticLocation">
  <xs:annotation>
    <xs:documentation>Subset of sections on cell where synaptic connection of a particular type is allowed. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:sequence>
      <xs:element name="synapse_type" type="xs:string">
        <xs:annotation>
          <xs:documentation>Which of the synaptic mechanisms can be present</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="synapse_direction" type="SynapseDirection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Whether this synapse location allows a presynaptic connection, a postsynaptic connection or either</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="group" type="xs:string" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>List of groups of sections allowing the synapse</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:sequence>
</xs:complexType>
