PotentialSynLoc

Subset of sections on cell where synaptic connection of a particular type is allowed.
    Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as
opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0

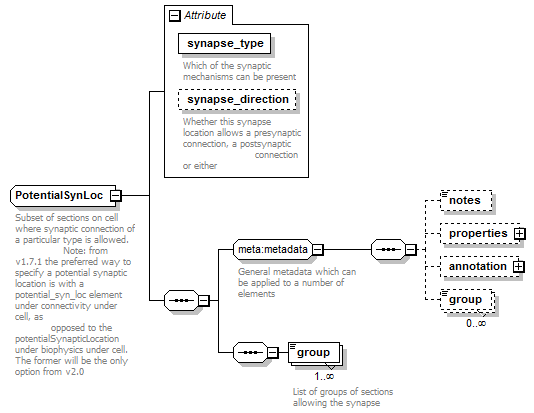

Complex Type Information

Model

Children: group

Attributes

QName Type Fixed Default Use Inheritable Annotation
synapse_direction SynapseDirection preAndOrPost optional
Whether this synapse location allows a presynaptic connection, a postsynaptic
connection or either
synapse_type xs:string required
Which of the synaptic mechanisms can be present

Used By

Source

<xs:complexType name="PotentialSynLoc">
  <xs:annotation>
    <xs:documentation>Subset of sections on cell where synaptic connection of a particular type is allowed. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:sequence>
      <xs:element name="group" type="xs:string" minOccurs="1" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>List of groups of sections allowing the synapse</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:sequence>
  <xs:attribute name="synapse_type" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Which of the synaptic mechanisms can be present</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="synapse_direction" type="SynapseDirection" use="optional" default="preAndOrPost">
    <xs:annotation>
      <xs:documentation>Whether this synapse location allows a presynaptic connection, a postsynaptic connection or either</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
