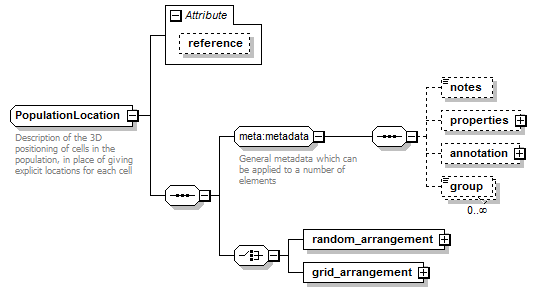

PopulationLocation

Description of the 3D positioning of cells in the population, in place of giving explicit locations for each cell

Complex Type Information

Model

(random_arrangement | grid_arrangement)
Children: grid_arrangement, random_arrangement

Attributes

QName Type Fixed Default Use Inheritable Annotation
reference xs:string optional

Used By

Element Population/pop_location

Source

<xs:complexType name="PopulationLocation">
  <xs:annotation>
    <xs:documentation>Description of the 3D positioning of cells in the population, in place of giving explicit locations for each cell</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:choice>
      <xs:element name="random_arrangement" type="RandomArrangement"/>
      <xs:element name="grid_arrangement" type="GridArrangement"/>
      <!-- More should be included... -->
    </xs:choice>
  </xs:sequence>
  <xs:attribute name="reference" type="xs:string"/>
</xs:complexType>
