NeuroMLLevel3

Description of neuronal models, including biophysics and channel mechanisms, and network connections (NeuroML Level 3).

Complex Type Information

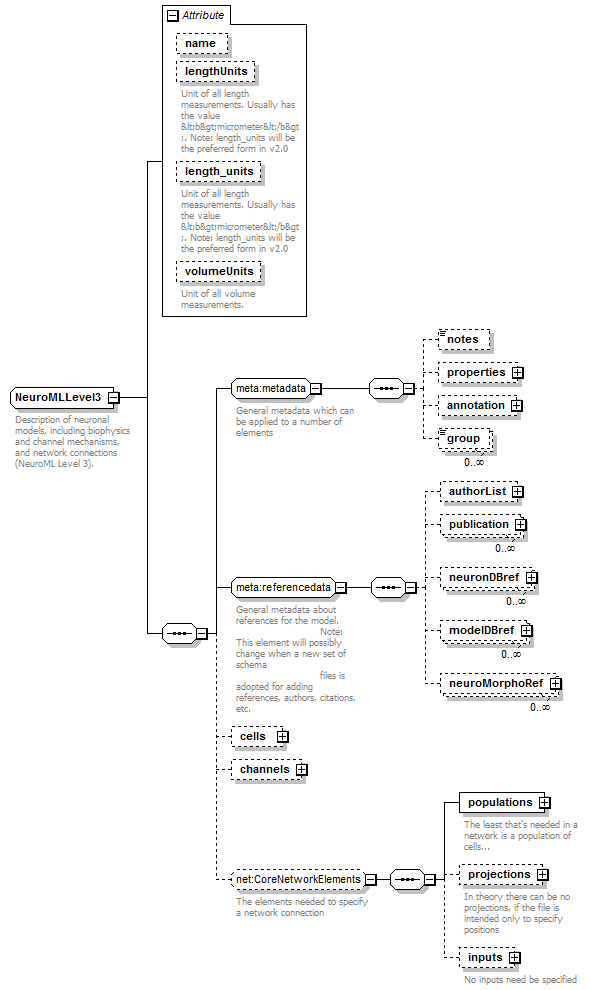

Model

notes{0,1} , properties{0,1} , annotation{0,1} , group* , authorList{0,1} , publication* , neuronDBref* , modelDBref* , neuroMorphoRef* , cells{0,1} , channels{0,1} , populations , projections{0,1} , inputs{0,1}
Children: annotation, authorList, cells, channels, group, inputs, modelDBref, neuroMorphoRef, neuronDBref, notes, populations, projections, properties, publication

Attributes

QName Type Fixed Default Use Inheritable Annotation
lengthUnits LengthUnits optional
Unit of all length measurements. Usually has the value <b>micrometer</b>. Note: length_units will be the preferred form in v2.0
length_units LengthUnits optional
Unit of all length measurements. Usually has the value <b>micrometer</b>. Note: length_units will be the preferred form in v2.0
name xs:string optional
volumeUnits VolumeUnits cubic_millimeter optional
Unit of all volume measurements.

Used By

Element neuroml

Source

<xs:complexType name="NeuroMLLevel3">
  <xs:annotation>
    <xs:documentation>Description of neuronal models, including biophysics and channel mechanisms, and network connections (NeuroML Level 3).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:group ref="meta:referencedata"/>
    <xs:element name="cells" type="Level3Cells" minOccurs="0"/>
    <xs:element name="channels" type="cml:ChannelML" minOccurs="0"/>
    <xs:group ref="net:CoreNetworkElements" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="name" type="xs:string" use="optional"/>
  <xs:attribute name="lengthUnits" type="meta:LengthUnits" use="optional">
    <xs:annotation>
      <xs:documentation>Unit of all length measurements. Usually has the value <b>micrometer</b>. Note: length_units will be the preferred form in v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="length_units" type="meta:LengthUnits" use="optional">
    <xs:annotation>
      <xs:documentation>Unit of all length measurements. Usually has the value <b>micrometer</b>. Note: length_units will be the preferred form in v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="volumeUnits" type="meta:VolumeUnits" use="optional" default="cubic_millimeter">
    <!-- Note: changed to the American English spelling in v1.8.1...-->
    <xs:annotation>
      <xs:documentation>Unit of all volume measurements.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
