Level3Connectivity

Biophysics of Level3 cell, including specification for allowable synaptic locations. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0

Complex Type Information

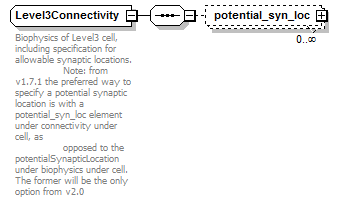

Model

potential_syn_loc*

Children: potential_syn_loc

Used By

Element

Level3Cell/connectivity

Source

<xs:complexType name="Level3Connectivity">
  <xs:annotation>
    <xs:documentation>Biophysics of Level3 cell, including specification for allowable synaptic locations. Note: from v1.7.1 the preferred way to specify a potential synaptic location is with a potential_syn_loc element under connectivity under cell, as opposed to the potentialSynapticLocation under biophysics under cell. The former will be the only option from v2.0</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="potential_syn_loc" type="PotentialSynLoc" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
