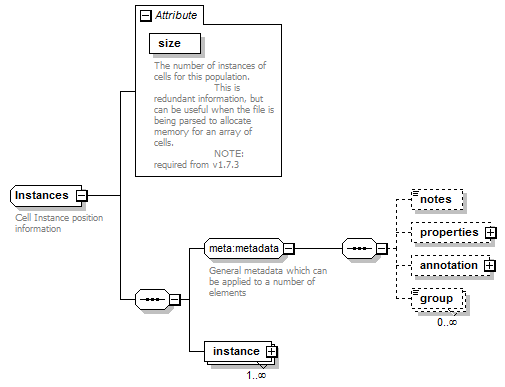

Instances

Cell Instance position information

Complex Type Information

Model

instance+
Children: instance

Attributes

QName Type Fixed Default Use Inheritable Annotation
size xs:nonNegativeInteger required
The number of instances of cells for this population.
This is redundant information, but can be useful when the file is being parsed to allocate memory for an array of cells.
NOTE: required from v1.7.3

Used By

Element Population/instances

Source

<xs:complexType name="Instances">
  <xs:annotation>
    <xs:documentation>Cell Instance position information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:element name="instance" type="CellInstance" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="size" type="xs:nonNegativeInteger" use="required">
    <xs:annotation>
      <xs:documentation>The number of instances of cells for this population. This is redundant information, but can be useful when the file is being parsed to allocate memory for an array of cells. NOTE: required from v1.7.3</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
