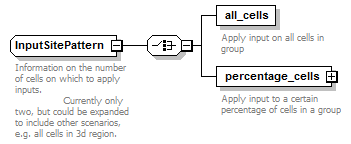

InputSitePattern

Information on the number of cells on which to apply inputs. Currently only two, but could be expanded to include other scenarios, e.g. all cells in 3d region.

Complex Type Information

Model

all_cells | percentage_cells

Children: all_cells, percentage_cells

Used By

Element

InputTarget/site_pattern

Source

<xs:complexType name="InputSitePattern">
  <xs:annotation>
    <xs:documentation>Information on the number of cells on which to apply inputs. Currently only two, but could be expanded to include other scenarios, e.g. all cells in 3d region.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <!-- Lots more scenarios could be described here... -->
    <xs:element name="all_cells">
      <xs:annotation>
        <xs:documentation>Apply input on all cells in group</xs:documentation>
      </xs:annotation>
      <xs:complexType/>
    </xs:element>
    <xs:element name="percentage_cells">
      <xs:annotation>
        <xs:documentation>Apply input to a certain percentage of cells in a group</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="percentage" type="meta:Percentage"/>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
