FixedPoolInfo

(IN PROGRESS, not stable!!!!) In this case the parameter which determines how quickly the internal pool 'fills' is given as a fixed value. Note this is a far from ideal way to express this value, but needed to be included as this was the parameter which was all that was present in a number of models, e.g. Traub et al. 2003 Layer 2/3 cell.

Complex Type Information

Model

phi

Children: phi

Used By

Element

DecayingPoolModel/fixed_pool_info

Source

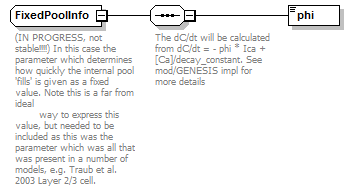

<xs:complexType name="FixedPoolInfo">
  <xs:annotation>
    <xs:documentation>(IN PROGRESS, not stable!!!!) In this case the parameter which determines how quickly the internal pool 'fills' is given as a fixed value. Note this is a far from ideal way to express this value, but needed to be included as this was the parameter which was all that was present in a number of models, e.g. Traub et al. 2003 Layer 2/3 cell.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:annotation>
      <xs:documentation>The dC/dt will be calculated from dC/dt = - phi * Ica + [Ca]/decay_constant. See mod/GENESIS impl for more details</xs:documentation>
    </xs:annotation>
    <xs:element name="phi" type="xs:double"/>
  </xs:sequence>
</xs:complexType>
