ElectricalSynapse

Electrical synaptic coupling as at a gap junction. A simple model with just a parameter for the (2 way) conductance

Complex Type Information

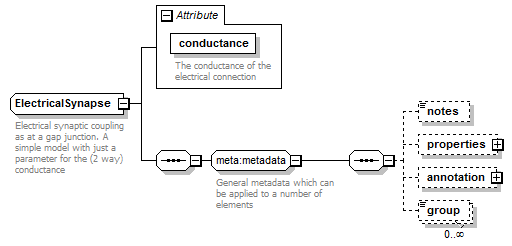

Model

notes{0,1} , properties{0,1} , annotation{0,1} , group*
Children: annotation, group, notes, properties

Attributes

QName Type Fixed Default Use Inheritable Annotation
conductance ConductanceValue required
The conductance of the electrical connection

Used By

Element SynapseType/electrical_syn

Source

<xs:complexType name="ElectricalSynapse">
  <xs:annotation>
    <xs:documentation>Electrical synaptic coupling as at a gap junction. A simple model with just a parameter for the (2 way) conductance</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
  </xs:sequence>
  <xs:attribute name="conductance" type="bio:ConductanceValue" use="required">
    <xs:annotation>
      <xs:documentation>The conductance of the electrical connection</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
