Deprecated_Ohmic

Signifies an ohmic relation; the current is proportional to the potential difference across the channel. Deprecated! Will be removed in v2.0

Complex Type Information

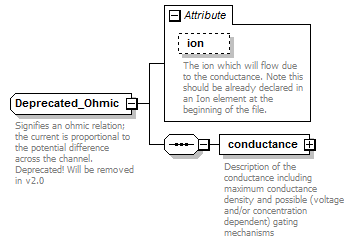

Model

Children: conductance

Attributes

QName Type Fixed Default Use Inheritable Annotation
ion xs:string optional
The ion which will flow due to the conductance. Note this should be already declared in an Ion element at the beginning of the file.

Used By

Source

<xs:complexType name="Deprecated_Ohmic">
  <xs:annotation>
    <xs:documentation>Signifies an ohmic relation; the current is proportional to the potential difference across the channel. Deprecated! Will be removed in v2.0</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="conductance">
      <xs:annotation>
        <xs:documentation>Description of the conductance including maximum conductance density and possible (voltage and/or concentration dependent) gating mechanisms</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:group ref="meta:metadata"/>
          <xs:element name="rate_adjustments" type="RateAdjustments" minOccurs="0">
            <xs:annotation>
              <xs:documentation>Adjustments, e.g. temperature dependence, to apply to the gating mechanisms</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="conc_factor" type="ConcFactor" minOccurs="0"/>
          <xs:element name="gate" type="Gate" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>Voltage/concentration dependent gate</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="default_gmax" type="bio:ConductanceDensityValue" use="required">
          <xs:annotation>
            <xs:documentation>Maximum conductance density of channel</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="ion" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The ion which will flow due to the conductance. Note this should be already declared in an Ion element at the beginning of the file.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
