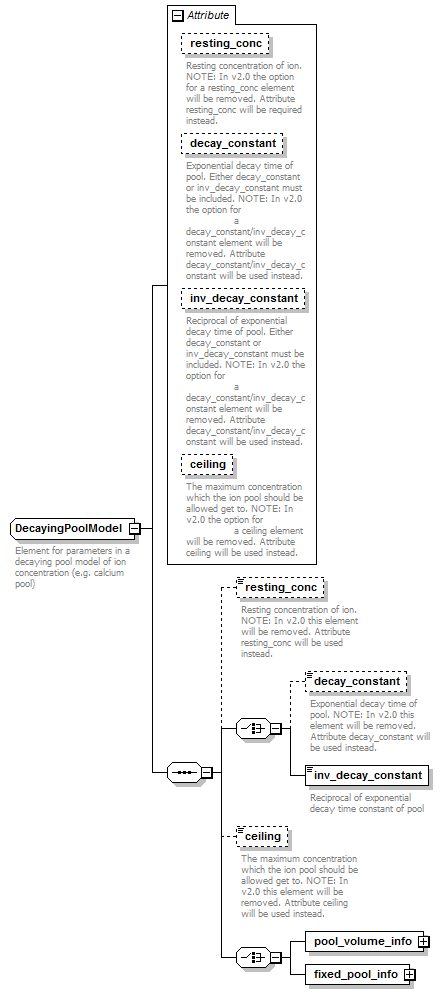

DecayingPoolModel

Element for parameters in a decaying pool model of ion concentration (e.g. calcium pool)

Complex Type Information

Model

resting_conc{0,1} , (decay_constant{0,1} | inv_decay_constant) , ceiling{0,1} , (pool_volume_info | fixed_pool_info)
Children: ceiling, decay_constant, fixed_pool_info, inv_decay_constant, pool_volume_info, resting_conc

Attributes

QName Type Fixed Default Use Inheritable Annotation
ceiling ConcentrationValue optional
The maximum concentration which the ion pool should be allowed get to. NOTE: In v2.0 the option for
a ceiling element will be removed. Attribute ceiling will be used instead.
decay_constant TimeConstantValue optional
Exponential decay time of pool. Either decay_constant or inv_decay_constant must be included. NOTE: In v2.0 the option for
a decay_constant/inv_decay_constant element will be removed. Attribute decay_constant/inv_decay_constant will be used instead.
inv_decay_constant InvTimeConstantValue optional
Reciprocal of exponential decay time of pool. Either decay_constant or inv_decay_constant must be included. NOTE: In v2.0 the option for
a decay_constant/inv_decay_constant element will be removed. Attribute decay_constant/inv_decay_constant will be used instead.
resting_conc ConcentrationValue optional
Resting concentration of ion. NOTE: In v2.0 the option for a resting_conc element will be removed. Attribute resting_conc will be required instead.

Used By

Element IonConcentration/decaying_pool_model

Source

<xs:complexType name="DecayingPoolModel">
  <xs:annotation>
    <xs:documentation>Element for parameters in a decaying pool model of ion concentration (e.g. calcium pool)</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="resting_conc" type="bio:ConcentrationValue" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Resting concentration of ion. NOTE: In v2.0 this element will be removed. Attribute resting_conc will be used instead.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="decay_constant" type="bio:TimeConstantValue" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Exponential decay time of pool. NOTE: In v2.0 this element will be removed. Attribute decay_constant will be used instead.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="inv_decay_constant" type="bio:InvTimeConstantValue">
        <xs:annotation>
          <xs:documentation>Reciprocal of exponential decay time constant of pool</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
    <xs:element name="ceiling" type="bio:ConcentrationValue" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The maximum concentration which the ion pool should be allowed get to. NOTE: In v2.0 this element will be removed. Attribute ceiling will be used instead.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="pool_volume_info" type="PoolVolumeInfo"/>
      <xs:element name="fixed_pool_info" type="FixedPoolInfo"/>
    </xs:choice>
  </xs:sequence>
  <xs:attribute name="resting_conc" type="bio:ConcentrationValue" use="optional">
    <xs:annotation>
      <xs:documentation>Resting concentration of ion. NOTE: In v2.0 the option for a resting_conc element will be removed. Attribute resting_conc will be required instead.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="decay_constant" type="bio:TimeConstantValue" use="optional">
    <xs:annotation>
      <xs:documentation>Exponential decay time of pool. Either decay_constant or inv_decay_constant must be included. NOTE: In v2.0 the option for a decay_constant/inv_decay_constant element will be removed. Attribute decay_constant/inv_decay_constant will be used instead.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="inv_decay_constant" type="bio:InvTimeConstantValue" use="optional">
    <xs:annotation>
      <xs:documentation>Reciprocal of exponential decay time of pool. Either decay_constant or inv_decay_constant must be included. NOTE: In v2.0 the option for a decay_constant/inv_decay_constant element will be removed. Attribute decay_constant/inv_decay_constant will be used instead.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="ceiling" type="bio:ConcentrationValue" use="optional">
    <xs:annotation>
      <xs:documentation>The maximum concentration which the ion pool should be allowed get to. NOTE: In v2.0 the option for a ceiling element will be removed. Attribute ceiling will be used instead.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
