Connections

The list of cell connections

Complex Type Information

Model

connection+
Children: connection

Attributes

QName Type Fixed Default Use Inheritable Annotation
size xs:nonNegativeInteger optional
The number of instances of connections.
This is redundant information, but can be useful when the file is being parsed to allocate memory for an array of cells.
NOTE: likely to be required from v2.0

Used By

Element Projection/connections

Source

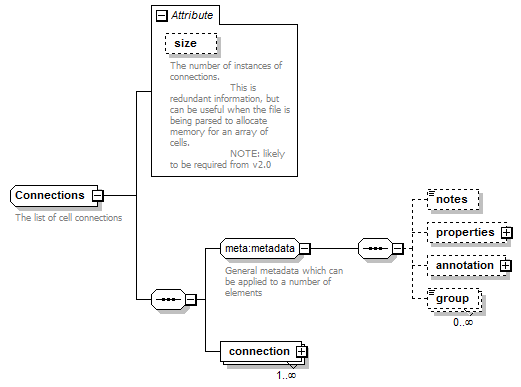

<xs:complexType name="Connections">
  <xs:annotation>
    <xs:documentation>The list of cell connections</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:element name="connection" type="Connection" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="size" type="xs:nonNegativeInteger" use="optional">
    <xs:annotation>
      <xs:documentation>The number of instances of connections. This is redundant information, but can be useful when the file is being parsed to allocate memory for an array of cells. NOTE: likely to be required from v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
