Connection

A single synaptic connection

Complex Type Information

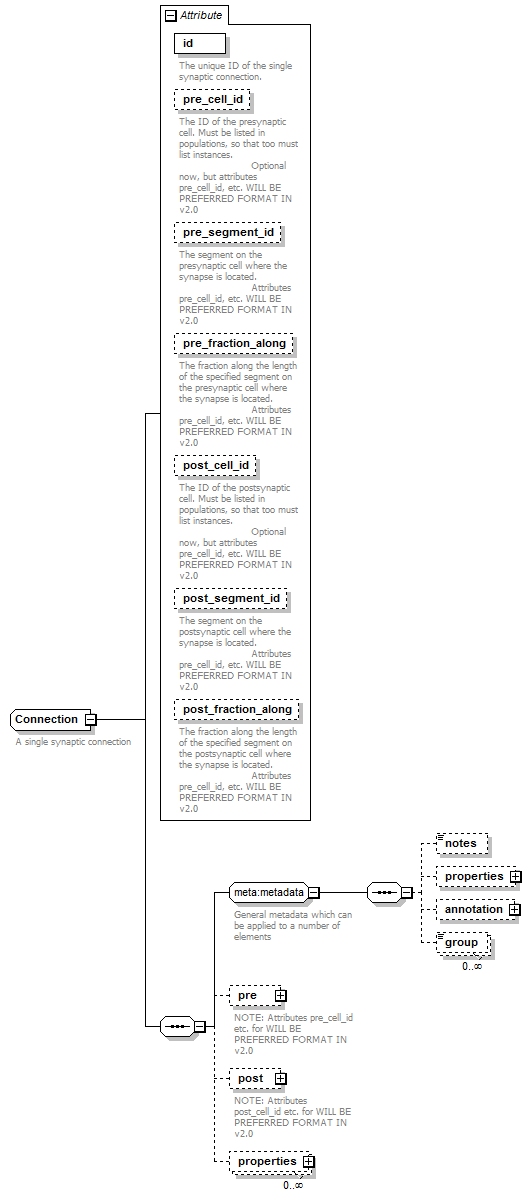

Model

pre{0,1} , post{0,1} , properties*
Children: post, pre, properties

Attributes

QName Type Fixed Default Use Inheritable Annotation
id xs:integer required
The unique ID of the single synaptic connection.
post_cell_id xs:integer optional
The ID of the postsynaptic cell. Must be listed in populations, so that too must list instances.
Optional now, but attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0
post_fraction_along ZeroToOne 0.5 optional
The fraction along the length of the specified segment on the postsynaptic cell where the synapse is located.
Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0
post_segment_id xs:integer 0 optional
The segment on the postsynaptic cell where the synapse is located.
Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0
pre_cell_id xs:integer optional
The ID of the presynaptic cell. Must be listed in populations, so that too must list instances.
Optional now, but attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0
pre_fraction_along ZeroToOne 0.5 optional
The fraction along the length of the specified segment on the presynaptic cell where the synapse is located.
Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0
pre_segment_id xs:integer 0 optional
The segment on the presynaptic cell where the synapse is located.
Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0

Used By

Element Connections/connection

Source

<xs:complexType name="Connection">
  <xs:annotation>
    <xs:documentation>A single synaptic connection</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="meta:metadata"/>
    <xs:element name="pre" type="SynapticLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>NOTE: Attributes pre_cell_id etc. for WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="post" type="SynapticLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>NOTE: Attributes post_cell_id etc. for WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="properties" type="LocalSynapticProperties" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:integer" use="required">
    <xs:annotation>
      <xs:documentation>The unique ID of the single synaptic connection.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pre_cell_id" type="xs:integer" use="optional">
    <xs:annotation>
      <xs:documentation>The ID of the presynaptic cell. Must be listed in populations, so that too must list instances. Optional now, but attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pre_segment_id" type="xs:integer" use="optional" default="0">
    <xs:annotation>
      <xs:documentation>The segment on the presynaptic cell where the synapse is located. Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pre_fraction_along" type="meta:ZeroToOne" use="optional" default="0.5">
    <xs:annotation>
      <xs:documentation>The fraction along the length of the specified segment on the presynaptic cell where the synapse is located. Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="post_cell_id" type="xs:integer" use="optional">
    <xs:annotation>
      <xs:documentation>The ID of the postsynaptic cell. Must be listed in populations, so that too must list instances. Optional now, but attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="post_segment_id" type="xs:integer" use="optional" default="0">
    <xs:annotation>
      <xs:documentation>The segment on the postsynaptic cell where the synapse is located. Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="post_fraction_along" type="meta:ZeroToOne" use="optional" default="0.5">
    <xs:annotation>
      <xs:documentation>The fraction along the length of the specified segment on the postsynaptic cell where the synapse is located. Attributes pre_cell_id, etc. WILL BE PREFERRED FORMAT IN v2.0</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
