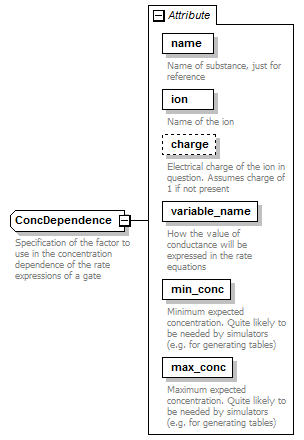

ConcDependence

Specification of the factor to use in the concentration dependence of the rate expressions of a gate

Complex Type Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
charge xs:integer 1 optional
Electrical charge of the ion in question. Assumes charge of 1 if not present
ion xs:string required
Name of the ion
max_conc ConcentrationValue required
Maximum expected concentration. Quite likely to be needed by simulators (e.g. for generating tables)
min_conc ConcentrationValue required
Minimum expected concentration. Quite likely to be needed by simulators (e.g. for generating tables)
name xs:string required
Name of substance, just for reference
variable_name xs:string required
How the value of conductance will be expressed in the rate equations

Used By

Elements CurrentVoltageRelation/conc_dependence, Deprecated_VoltageConcGate/conc_dependence

Source

<xs:complexType name="ConcDependence">
  <xs:annotation>
    <xs:documentation>Specification of the factor to use in the concentration dependence of the rate expressions of a gate</xs:documentation>
  </xs:annotation>
  <xs:attribute name="name" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Name of substance, just for reference</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="ion" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Name of the ion</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="charge" type="xs:integer" use="optional" default="1">
    <xs:annotation>
      <xs:documentation>Electrical charge of the ion in question. Assumes charge of 1 if not present</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="variable_name" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>How the value of conductance will be expressed in the rate equations</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="min_conc" type="bio:ConcentrationValue" use="required">
    <xs:annotation>
      <xs:documentation>Minimum expected concentration. Quite likely to be needed by simulators (e.g. for generating tables)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="max_conc" type="bio:ConcentrationValue" use="required">
    <xs:annotation>
      <xs:documentation>Maximum expected concentration. Quite likely to be needed by simulators (e.g. for generating tables)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
