CableGroup

Definition of a cable group. Cable groups can also be specified by adding an element group to the cable element

Complex Type Information

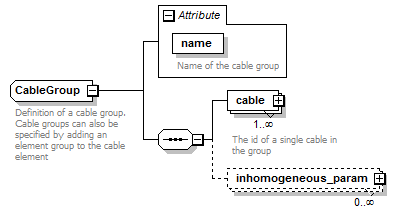

Model

cable+ , inhomogeneous_param*
Children: cable, inhomogeneous_param

Attributes

QName Type Fixed Default Use Inheritable Annotation
name xs:string required
Name of the cable group

Used By

Element Cell/cables/cablegroup

Source

<xs:complexType name="CableGroup">
  <xs:annotation>
    <xs:documentation>Definition of a cable group. Cable groups can also be specified by adding an element group to the cable element</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="cable" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The id of a single cable in the group</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="id" type="xs:nonNegativeInteger" use="required"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="inhomogeneous_param" type="InhomogeneousParam" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="name" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation>Name of the cable group</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
